Waves eMotion LV1 Classic 64-Channel / 44-Bus Live Mixing Console Kit with Fader Expansion

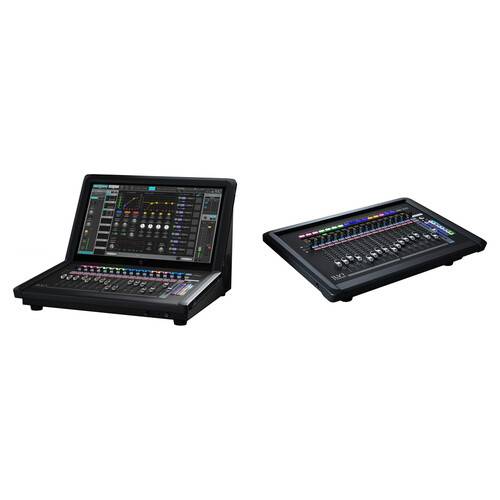

Assembled to provide a comprehensive mixing and control apparatus for live audio applications, this Fotohaus Klinger Kit bundles a Waves eMotion LV1 Classic 64-Channel / 44-Bus Live Mixing Console with an LV1 Control Premium Fader Expansion, which adds an additional 17 motorized faders and 17 encoders to the live mixing console.

Building upon the proven quality LV1 mixer engine, the Waves eMotion LV1 Classic is the first fully integrated hardware mixer that delivers the preferred console and workflow of live sound engineers worldwide. The LV1 Classic packs the pristine-sounding sound engine into an ergonomic enclosure with a quick-access 21.5" multitouch screen and a powerful tactile control surface with 16+1 100mm Alps faders.

The mixer is capable of mixing up to 64 stereo channels with 44 stereo buses. Its double-precision 32-bit float mix engine works with sample rates from 44.1 to 96 kHz. The rear panel includes 16 Waves Signature preamps and 12 analog line outputs + AES3 I/O for added flexibility. The system is scalable and can be expanded with more I/O, DSP, Dante, MADI, and additional physical fader banks and an external touchscreen.

Note: The LV1 requires a dedicated Ethernet cable from the host computer to the Wi-Fi router to use mobile apps on the same Wi-Fi network. Do NOT run the mobile apps network over the SoundGrid network. If the host computer does not have a second Ethernet port, use a USB-to-Ethernet (or other) adaptor.

eMotion LV1 Classic is built for easy expansion into systems of all sizes—from small systems with a single console with IO and DSP expansions, to mega systems with multiple consoles at different mix positions.

Designed to serve as a fader expansion for LV1 Classic digital mixing consoles, the Waves Emotion LV1 Control is a premium control surface that can also serve as the fader bank for modular LV1 systems. Simply connect the LV1 Control to the LV1 with a single USB connection and unlock greater tactile control than ever before.

The LV1 Control borrows from the LV1 Classic's tactile surface and features 17 motorized 100mm faders, 17 encoders, and 17 mini-displays with per-channel LCD metering; Touch-and-Turn function mapping for on-screen parameters; Select/Mute/Solo toggle control per channel; 8 layer keys and 8 utility keys; tempo pad; and 16+2 user-defined keys for user customization.
