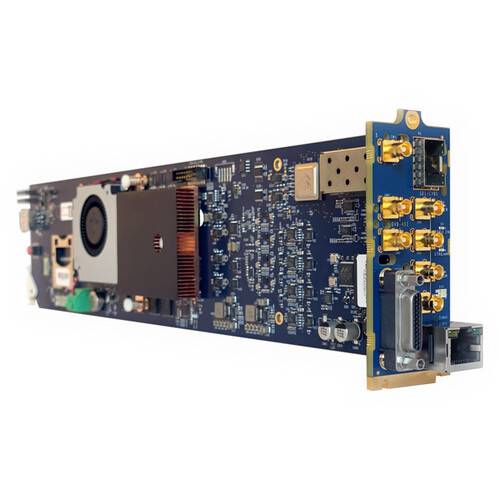

VITEC MGW Diamond openGear 1-Channel 4K HEVC/H.264 Encoder (Main & Rear I/O Modules)

Add UHD 4K video encoding to your OGX openGear frame with this MGW Diamond openGear 1-Channel 4K HEVC/H.264 Encoder from VITEC. The card installs into a standard 2 RU openGear frame and provides one 12G-SDI video input and four 3G-SDI video inputs for IP streaming distribution out the Gigabit RJ45 Ethernet port. The card can input up to DCI 4K60 video, and it can output one stream of up to UHD 4K60 video.

Other features include simultaneous HEVC/H.265 and AVC/H.264 encoding of two separate channels, up to 32 channels of audio output, real-time AES-128/256 encryption, and support for KLV / STANAG metadata and time stamping.

Key Features

openGear 4K HEVC video encoder card designed for IPTV distribution or Direct-to-Web applications

Low-latency streaming from four SDI/Composite sources simultaneously

Support for Ultra-High Definition (4K) and High-Definition Range (HDR)

Up to eight output streams

Next-generation HEVC (H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264

Stream protection for reliable video/audio and metadata transmission (Zixi, SRT, and Pro-MPEG)

KLV / STANAG metadata ingest from SDI, IP plus multiplexing, JITC Compliant

Compact, low-power hardware design optimized for field use (14W) or dense openGear encoding solution

Applications

Multi-site and multi-channel IP video contribution

IP video dissemination from multiple video sources (analog/digital) for Situation Awareness (SA) within ground vehicles, ships, or aircraft

Streaming Situational Awareness and FMV content across LANs and WANs with KLV / STANAG metadata

Streaming Intelligence, Surveillance and Reconnaissance (ISR) video feeds from ground and airborne vehicles over RF or satellite link

Streaming video to desktop/laptop, TV, and mobile devices over bandwidth-constrained pipes
