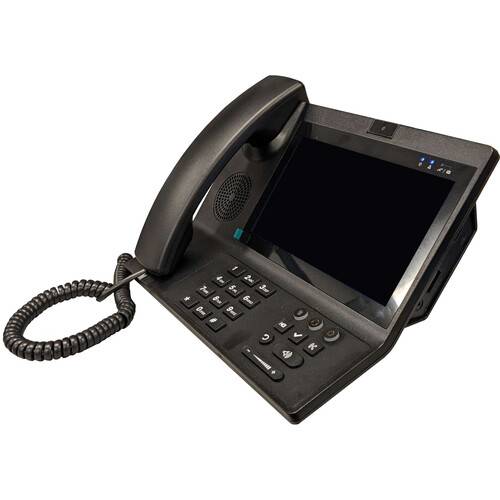

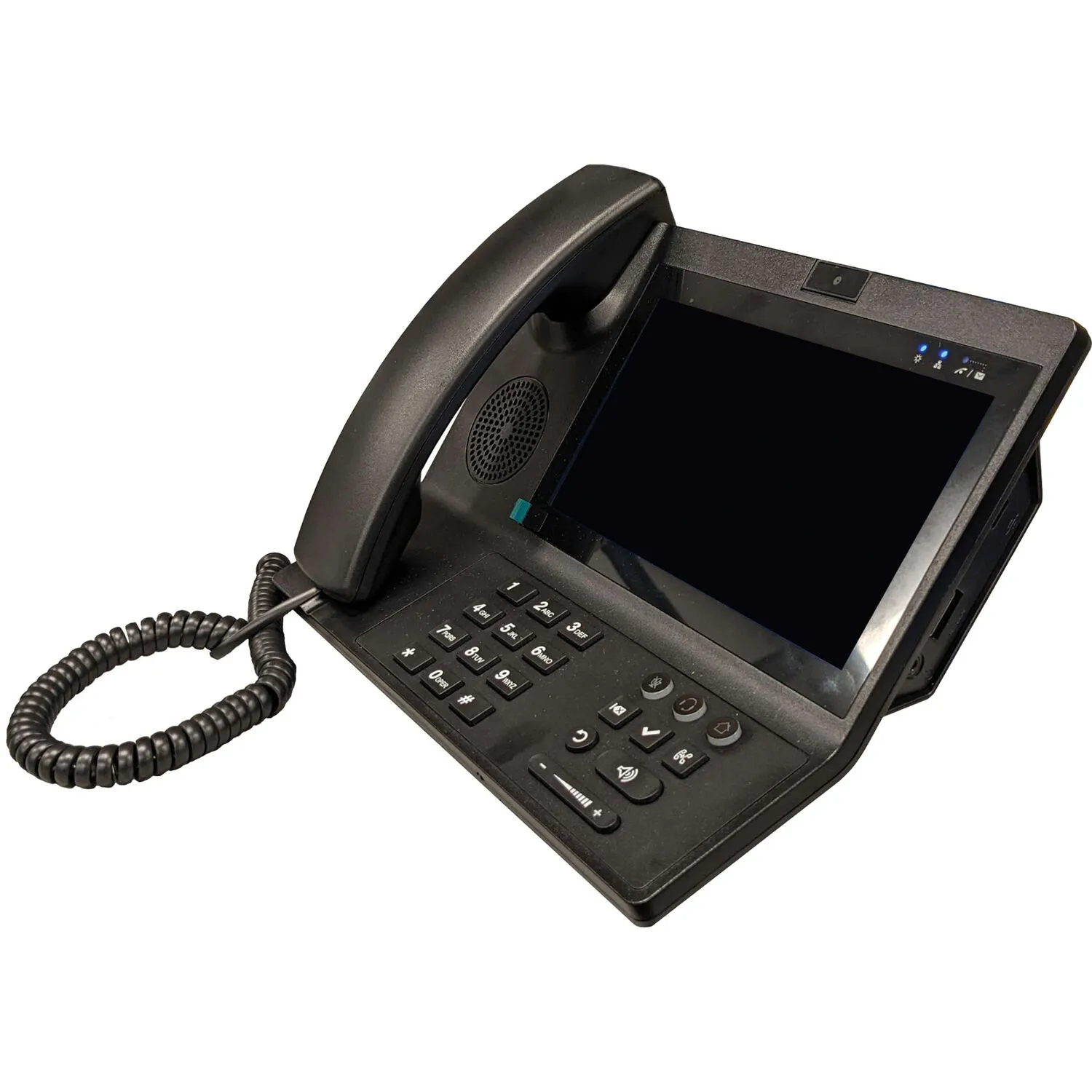

Toa Electronics N-SP80MS2 SIP Multimedia Station

Designed for use in combination with the common IP telephone systems, the Toa Electronics N-SP80MS2 is the latest SIP compliant Multimedia station equipped with a 1080p high-resolution 7" touchscreen that can be used for video communications and enables you to make conversation while monitoring the camera image sent through the N-SP80VS2 SIP video door station.

The built-in camera now features a physical privacy shutter, allows for video communications to be made between the same model, and is backwards compatible with N-SP80MS1 units. One of the following 3 conversation methods can be selected: handset conversation, hands-free conversation, and headset conversation (an optional headset needs to be connected to a headset terminal). The N-SP80MS2 can be operated when connected to a PoE-compatible switching hub using a LAN cable and also supports Bluetooth and Wi-Fi. Additionally, a multicast audio stream output function can be used for paging.

• Fully compliant with SIP.
• Connected to the network via Ethernet.
• Supports 2 ways of connecting: Connect to the SIP server using SIP and peer-to-peer connection.
• Supports the following audio codecs: G.711, G.722, G.729, L16, and Opus. (Audio codec is fixed to G.722 when in peer-to-peer connection.)
• Can be powered by means of PoE or from the DC power supply unit.
• Easy to operate on the screen, thanks to its touch panel and GUI (graphical user interface) design
• Use it as a telephone with intuitive dialing and a ten-key keypad.
• Select one of three conversation methods: handset conversation, hands-free conversation, or headset conversation.
• Easy conversations between stations, even under a high-noise environment.

Audio bandwidth

• G. 722 codec, up to 7 kHz

Hands-free

• Speaker: 1.97" cone type, maximum output 2W, 8 ohms
• Microphone: Omnidirectional electret condenser microphone

Handset:

• Receive Path: 1.57" cone type, maximum output 250mW, 32 ohms
• Send path: Electret condenser microphone

Display

• 7" capacitive touchscreen TFT LCD, 1024 x 600 pixels, 16:9 wide-screen

Camera:

• Image device: 1/5" CMOS
• Number of effective pixels: 2MP
• Maximum resolution: 1080p
• Other features: free rotation

Video

• Image size: QCIF, CIF, 4CIF, VGA, 720P
• Bit rate: 64 kb/s to 2 Mb/s

External interface

• USB, HDMI, Bluetooth 5.2

Network

• Network I/F: 10BASE-T / 100BASE-TX / 1000BASE-TX (Auto-Negotiation)
• Network protocol: UDP/TCP/IP, HTTP/HTTPS, TLS, RTP /RTCP, ARP, NAT, NTP, IGMP, SIP, etc.
• Pocket transmission system: Unicast, Multicast
• Paging: multicast transmission x1
• Connector: RJ45 two ports (one supports PoE (IEEE802 3af)
• Quantifying bit number: maximum 16-bit
• Voice encoding method: G.711 µ-law / A-law, G.722, G.729, OPUS
• Video compression method: H.263, H.264, H.265, VP8

Network protocol

• Wireless standard: IEEE 802.11 b/g/n
• Working frequency bond: 2.4 GHz
