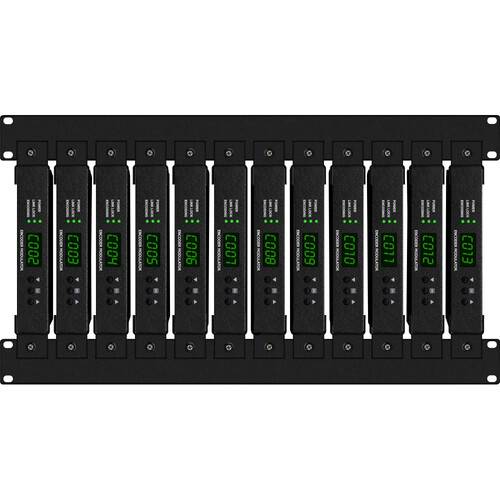

Thor Petit HDMI RF Modulator Chassis System (12 Channels)

Convert up to 12 HDMI video channels to RF video, which you can send to hundreds of TV's, with the Petit HDMI RF Modulator Chassis System from Thor Fiber. This setup is perfect for bars, restaurants, or anyone whom would like to set up twelve different HDMI media feeds to their location, allowing for much more diversity in content displayed throughout your venue. Control your setup via a PC by connecting to the modulator and use the easy-to-use yet powerful GUI for controlling your system via NMS over RJ45.

The Thor Modulator is an all-in-one device, integrating HD MPEG2 encoding with AC3 Dolby Audio with an internal digital modulator. Convert 720p, 1080i, and 1080p HDMI audio/video signals into DVB-C / DVB-T / ATSC / ISDB-T RF output for display on TV's with an RF input. Each modulator has its own loop out, RF In/Out combiner, Network Management System (NMS) port and programmable front LCD panel.

• HDMI input, HDCP compliant (works with any HDMI device)
• 10/100 Ethernet NMS port for control, setup, and monitoring
• RF output could be set to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
• RF output power is +24 dBmv, enough for distributing HDTV video to multiple TVs over the existing coax cable network
• RF power can be controlled over the network via NMS GUI (Proprietary)
• Although you can edit through the front panel, you can also use the Graphical User Interface via a web browser and the NMS port to set more precise settings
• You can also use multiple Petits to broadcast in both ATSC and Cable QAM modulation for your various media needs
• MPEG2 video encoding, AC3 Audio encoding
• Video bit-rate: 19.3 Mb/s
• Supports any CATV RF agile channels form 57-1000 MHz, channels 2-145
• Supports output resolutions up to 1080p
• Easy to set up via NMS
• Small size and lightweight
• Includes wall-mount-type rack ears
