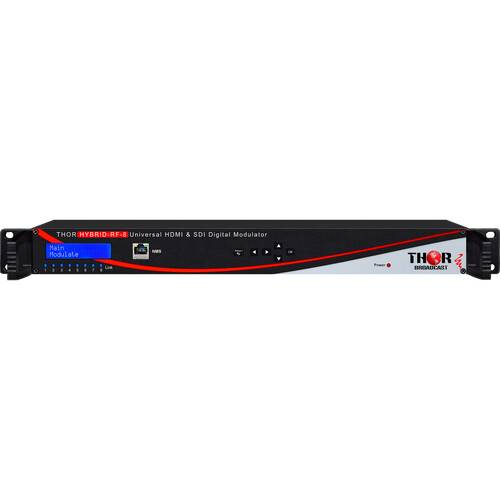

Thor 8-Channel HDMI and SDI Clear CATV RF Modulator (1 RU)

Use the 8-Channel HDMI and SDI Clear CATV RF Modulator from Thor to send an HDMI or SDI signal to television sets and monitors via an RF coaxial output. With the independent input cards featured, each channel can be selected individually as an HDMI or SDI input, and each can have its own independent frequency and modulation standard, allowing flexibility for modulation and eliminating the need for HDMI to SDI or SDI to HDMI converters. You can input up to 8 channels of HDMI or SDI using the front-panel buttons or with the GUI.

An NMS port and LCD display with D-Pad buttons are featured for quick and easy control. The modulator supports universal modulation standards such as Clear QAM Annex A and Annex B, ATSC-8VSB, DVB-T, and ISDB-T. This Hybrid modulator supports MPEG2 video encoding up to 25 Mb/s/channel, Audio AC3 or MPEG1 Layer 2, and AAC with low latency and VTC for increased flexibility.

Eight independent HDMI and SDI inputs which are individually selectable for each of the eight channels you can output

HDMI is HDCP compliant for use with any source

Outputs eight separate CATV RF channels QAM / ATSC - 8VSB / DVB-T / ISDB-T which are selectable in the GUI

RF output on each of the eight RF channels can be individually set to a frequency and modulation standard

Supports DVB-C Annex A and B, QAM 64, and QAM 256

Supports HD video up to 1080p / 59.94 / 60

Also supports resolutions of 1080i, 720p, and 480i

Supports latency of 100, 500, and 1000 ms

Video encoding rate up to 25 Mb/s

MPEG2 video encoding

Dolby AC3 and MPEG1 Layer 2 and AAC audio encoding

Virtual channel number and name supported

Frequency of 50 to 900 MHz

NMS web interface controllable

Web GUI interface

LED indicators for video detection

LCD display and front-panel control buttons for setup, control, and status

Powerful processing with the MPEG2 video encoding chip

EAN: 0659682981574
