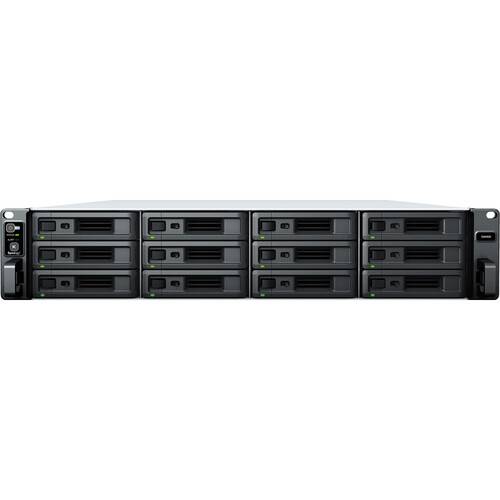

Synology SA6400 12-Bay NAS Enclosure

The SA6400 12-Bay NAS Enclosure from Synology is 2 RU rackmount server engineered for scalability and performance. Its high sustained throughput, ability to scale up to 108 drive bays, and comprehensive data protection solutions make it suitable for large storage deployments that require fast data transfer speeds and dependable service uptime. This unit has 12 drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. Should users need to expand the overall capacity of their SA6400, up to eight RX1223RP expansion units offer an additional 12 drive bays each. This NAS can deliver sequential reads of up to 6500 MB/s and sequential writes of up to 4000 MB/s.

The SA6400 is powered by a 2.9 GHz AMD EPYC 7272 12-Core processor, which will allow you to run multiple functions simultaneously. The built-in 32GB of DDR4 ECC RAM will allow quick access to frequently used files and programs and may also be upgraded to a total of 1TB. Also featured are two USB-A 3.2 Gen 1 ports, which allow it to be connected to compatible peripherals. Network connectivity is achieved via the two 10 Gigabit Ethernet ports or four Gigabit Ethernet ports with failover support, which help to provide redundancy in the case that a LAN connection malfunction occurs on one port. In addition, link aggregation helps to increase connection speeds beyond the limits of a single network port or cable. If you're looking to expand this NAS, there are two PCIe Gen 3.0 x8 slots.

The SA6400 runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Basic, and F1. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.

Synology has engineered the SA6400 to be energy efficient. Not only does it offer four 80 x 80mm fans to help keep the system running cool, the server supports numerous scheduled power on/off cycles and hard drive hibernation to further minimize power consumption and operation expenses. The SA6400 operates using dual redundant power supplies (100-240 VAC at 50/60 Hz) and includes an accessory pack and two AC power cords. Protection is provided by a limited 5-year warranty.

With the ability to deliver more than 1 petabyte of raw capacity, The SA6400 is designed for extensive, on-demand scaling of data storage. The stable high performance makes it ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.

• Random iSCSI 4K reads of over 487,600 IOPS and random iSCSI 4K writes of over 126,700 IOPS with sequential reads of over 6500 MB/s and sequential writes of over 4000 MB/s support both I/O-intensive applications and large file transfers.
• Equipped with dual 10GbE RJ45 ports for fast networking out of the box and two PCIe 3.0 expansion slots to accommodate more streams and tackle specialized applications through 25/40GbE adapter cards.
• Dedicated out-of-band management (OOB) port helps IT administrators reduce maintenance and troubleshooting efforts, while redundant power supply units and system fans eliminate single points of hardware failure.
• Maximize your return on investment while accommodating more demanding business needs by flexibly adding SSD cache to lower down latency and boost read/write speeds.

Built-in solutions help maintain high system availability and facilitate fast recovery if a disaster or major outage occurs.

• Synology High Availability provides fast failover between two identical SA6400 units to keep services online when disaster strikes.
• Snapshot Replication provides schedulable, near-instantaneous data protection with version control, ensuring that documents in shared folders and LUNs remain safe and available.
• Hyper Backup protects your Synology system by backing up data and configurations to multiple destinations, including the secure C2 Storage public cloud, with efficiency delivered by built-in deduplication, integrity checks, compression, and versioning.
• Protect full VMware vSphere and Microsoft Hyper-V deployments with agentless virtual machine backup in Synology Active Backup for Business.

Synology's collaboration suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.

• Synology Drive supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup.
• Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
• Synology Chat brings teams together with one-on-one chats, group chats, and encrypted private channels over multiple platforms.
• Synology MailPlus8 provides a secure, reliable, and private email server.
• Synology Calendar helps teams keep track of what is most important with convenient calendar sharing and scheduling.
• Synology Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local access at LAN speed.

The SA6400 can serve as virtual machine storage, VM backup server, and elastic container and VM host. It is fully certified as storage for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments.

• Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
• Host lightweight containers and VMs for testing, sandboxing, and emergency recovery purposes with Docker and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and virtualized versions of DSM.
