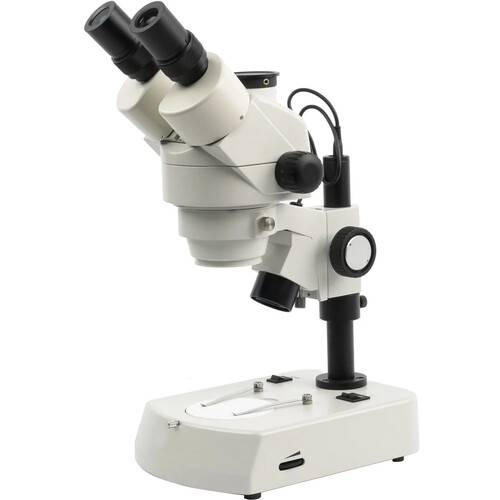

Swift Zoom Trinocular Stereo Microscope with D-Moticam 4000X Camera

The DC4K-440T-440PLL Zoom Trinocular Stereo Microscope from Swift is a professional-quality stereo microscope for industrial and educational settings. It is bundled here with the D-Moticam 4000 camera, designed for ease of use and the ability to output fast live images at 4K in full HD. Simply plug the camera into the HDMI port and display images using the onboard software and a USB mouse through an HDMI monitor, or connect your camera through USB to a Windows, Mac or Linux computer. The integrated SD card slot makes it easy to save images and data. The 0.75-4.5x eyepieces combined with the 10x objective offer a magnification range of 7.5-45x, and the overall height adjusts 13.4-17" to accommodate larger objects. The large zoom ratio of 6:1 and a standard working distance of 110mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180x.

Trinocular viewing head for cameras/imaging systems

Accepts 23mm eyepiece reticle

Continuous magnification from 7.5x through 45x

Viewing head rotates 360°

Paired wide field 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55-75mm

0.75x to 4.5x zoom magnification eyepieces

Large dual focusing knobs with slip clutch to prevent damage to mechanism

Tension adjustment eliminates focus drift

Top LED light has directional beam and rheostat control

Bottom LED light offers cool operation, greater light efficiency

Additional wall adapter required for 240V operation

American-style IEC power cord

110-240V internal auto-switching power supply

Heavy-duty 3-wire grounded cord and plug

Base-mounted light controls permit choice of top only, bottom only, or dual illumination

Two 80mm stage plates (frosted glass and reversible black/white plastic contrast plates)

Blue filter for transmitted light

Heavy-duty post mount with locking support collar permits up or down adjustment of viewing head to accommodate different-sized objects on stage

Professional, all-metal frame, gray enamel finish

Locked-on stage clips

Full HD 4K resolution

Capture Resolution: 8MP (3864 x 2228 pixels)

Progressive scan mode, rolling shutter

Connect to monitor via HDMI or computer vis USB

Sensor Size: 1/2.8"

Software: MotiConnect for Android/iOS and Motic Images Plus 3.1 for Windows/Mac OS
