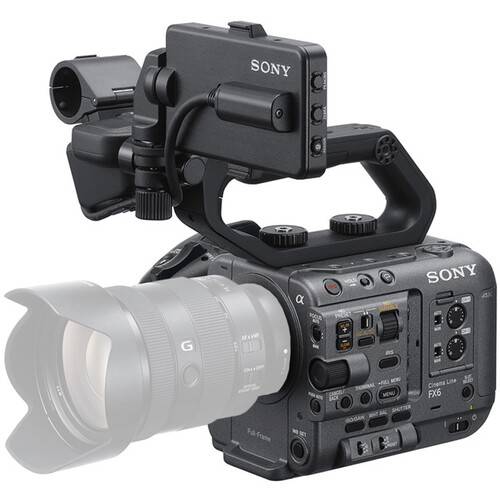

Sony FX6 Full-Frame Cinema Camera (Body Only)

The FX6 Full-Frame Camera from Sony was developed to offer versatile, cine-style imaging in a truly compact form. With the ability to capture up to 15+ stops of dynamic range, Sony's S-Cinetone gamma for filmlike skin tones, and up to 10-bit, 4:2:2 XAVC-I recording, the FX6 is poised to both supplement your FX9 or VENICE capture and to nimbly take on documentary, gimbal, and drone shoots on its own.

The FX6 camera combines a 4K full-frame Exmor R sensor with a BIONX XR engine for extremely sensitive capture in a range of settings, using a base ISO of 800 as well as an ISO 12800 high-sensitivity mode for nuanced low-light scenes. This 10.2 MP image sensor features back-side illumination for excellent low-light performance, 627 focal plane points for speedy phase-detection autofocus, and full-frame lens compatibility that produces a rich, immersive look. The sensor's fast scan speed minimizes rolling shutter artifacts and supports high frame rates and quick autofocus responses.

As part of Sony's Cinema Line, the FX6 shares key imaging features with established cameras like the VENICE and FX9. Common core attributes include a full-frame sensor, filmlike color science, a compact, lightweight form, professional connector interfaces, and advanced autofocus choices.

Compared to the FX9, the FX6 differs in several specs; but many FX6 specs tick the same boxes and several improve upon the FX9:

• It matches the FX9's video capture up to DCI 4K60
• Has the same S-Cinetone, S-Log3, and HLG gamma choices
• Outputs 16-bit raw like the FX9
• Sony E lens mount
• Offers the same 1/4 to 1/128 ND options
• Also provides 2-channel XLR audio inputs

FX6 differences from the FX9:

• 4K capture vs 6K
• Has a single 12G/6G/3G-SDI BNC port, trimming the FX9's additional 3G-SDI port
• Incorporates a timecode port but lacks the FX9's genlock connector

Improved FX6 specs include:

• An ISO range of 320 to 409,600 vs the FX9's 320 to 102,400 range
• Top frame rates of 120p in 4K and up to 240p in HD vs the FX9's top 1080p in HD
• Dual card slots compatible with both durable, highly efficient CFexpress Type A or widely available SDXC cards, compared to the FX9's reliance on proprietary XQD cards and a single SD card option

• Adds a BIG6 home screen that enables you to easily review settings and equipment configurations while capturing video. Improves the display layout of the camera status and settings, enhancing visibility during capture and playback.
• Adds to the Assignable Buttons tab:
• Crop Select
• LUT On/Off
• AE Level/Mode

• Changes the notation of the 1/50 shutter speed to 1.2F (1/50) in 59.94p.
• Network configuration method is improved by:
• Changing the classification of the network menu in the Full Menu.
• Enabling network setting changes on the status screen.

• Displays a message when operations are disabled due to configuration limitations.
• Status screen: adds support for the Camera ID and Reel Number settings to the status screen; added the Index screen to the status screen.
• Changes the display when the Camera ID and Reel number of the next clip are changed.
• Ends support for WPA and WEP functions, limiting your options to the more secure WPA2 or WPA3.
• Adds support for connecting a smartphone to the Internet while connected to the camera via Wi-Fi Direct.
• Enables the display of network speed on the shooting screen.
• Adds to Monitor & Control:
• Frame rate settings for S&Q Motion.
• Setting attributes and deleting 3D LUT files.
• Low-resolution mode for network monitoring.
• NOTE:Ver. 2.5.0 or later of the Monitor & Control app is necessary to access these functions.
• The Monitor & Control app may not be available in select countries or regions.

• Adds support for a new HLG Mild Base Look preset when the target display is HDR (HLG).
• Adds optical density (logarithmic notation) to the display format for ND filter light transmittance level.
• Improves the image quality when using a User 3D LUT file.
• Adds support for importing/exporting scene files from external media.
• Improves auto focus performance when the system frequency is 29.97, 25, 24, or 23.98.
• Adds support for the HDMI Focus Magnifier function.
• Adds support for external recording of Blackmagic RAW when using raw video output via HDMI.
• NOTE: please check the Blackmagic Design site for compatible BMD components.

Choose from a base ISO of 800, a high-sensitivity 12,800 ISO for lower-light capture, and a 409,600 maximum ISO for true low-light settings.

The FX6 is the first compact, full-frame camera to offer UHD 4K 4:2:2 capture in the high-quality yet efficient XAVC-I codec. It also enables you to choose from a range of professional XAVC Intra and XAVC Long codecs at bit rates ranging from 35 to 600 Mb/s.

For slow-motion and fast action looks, choose from full-frame rates ranging from:

• 1-60 fps in HD to DCI 4K resolutions
• 100 or 120 fps in HD through UHD 4K
• 150, 180, 200, or 240 fps in Full HD

Super35 choices include:

• 1-60, 100, and 120 fps in Full HD

Sony's S-Cinetone gamma curve offers a cinematic look with filmlike color, softer tones, and pleasing skin tone reproduction. Not only is this cinematic look available for in-camera viewing, but it can also be captured and output with minimal or no grading at all for a time-saving post process. The S-Cinetone, S-Log3, S-Gamut3, and S-Gamut3.Cine choices also streamline the process of matching FX6 footage with your VENICE or FX9 video and offer broad color-grading options.

Pair the FX6 with Sony's Catalyst Prepare/Browse software to use metadata to stabilize your image, automatically rotate gimbal footage, and add flags for easier clip filtering in postproduction.

The FX6's 3.5" LCD monitor offers both high-resolution viewing and the ease of touchscreen camera control. The LCD quick menu controls include key settings like Codec, Imager Scan Mode, Picture Size and Frequency, Base ISO/Sensitivity, Shooting Mode, and Audio Levels.

Constructed with a lightweight yet durable magnesium alloy chassis, the FX6 body offers maximum reliability and efficiently disperses heat to enable extended recording times. Exterior seams, buttons, and interfaces have been treated with updated sealing that improves the camera's dust and moisture resistance as well.

The FX6 offers up to 4-channel audio recording by combining sources from the dual XLR inputs, the 2-channel multi-interface shoe input, and the stereo mic built into the camera's top handle. This enables the simultaneous use of an external microphone for recording your main audio source and the built-in microphone for ambient sound and/or voice memos by the operator.

The FX6's dual media slots accept both rugged, high-performance, high-capacity CFexpress Type A cards and widely available UHS-II/UHS-1 SDXC cards. Note that the CFexpress Type A cards are required for 100/120 fps UHD 4K capture and 150/180/200/240 fps HD high-speed capture.

The modular design of the FX6 enables you to pare down to its compact body for gimbal or drone use, or it can be used with separately available accessories, such as a smart grip and smart handle for fingertip control when shooting handheld. A 3.5" LCD screen can be quickly positioned on the camera at multiple locations to provide comfortable, ergonomic viewing.
