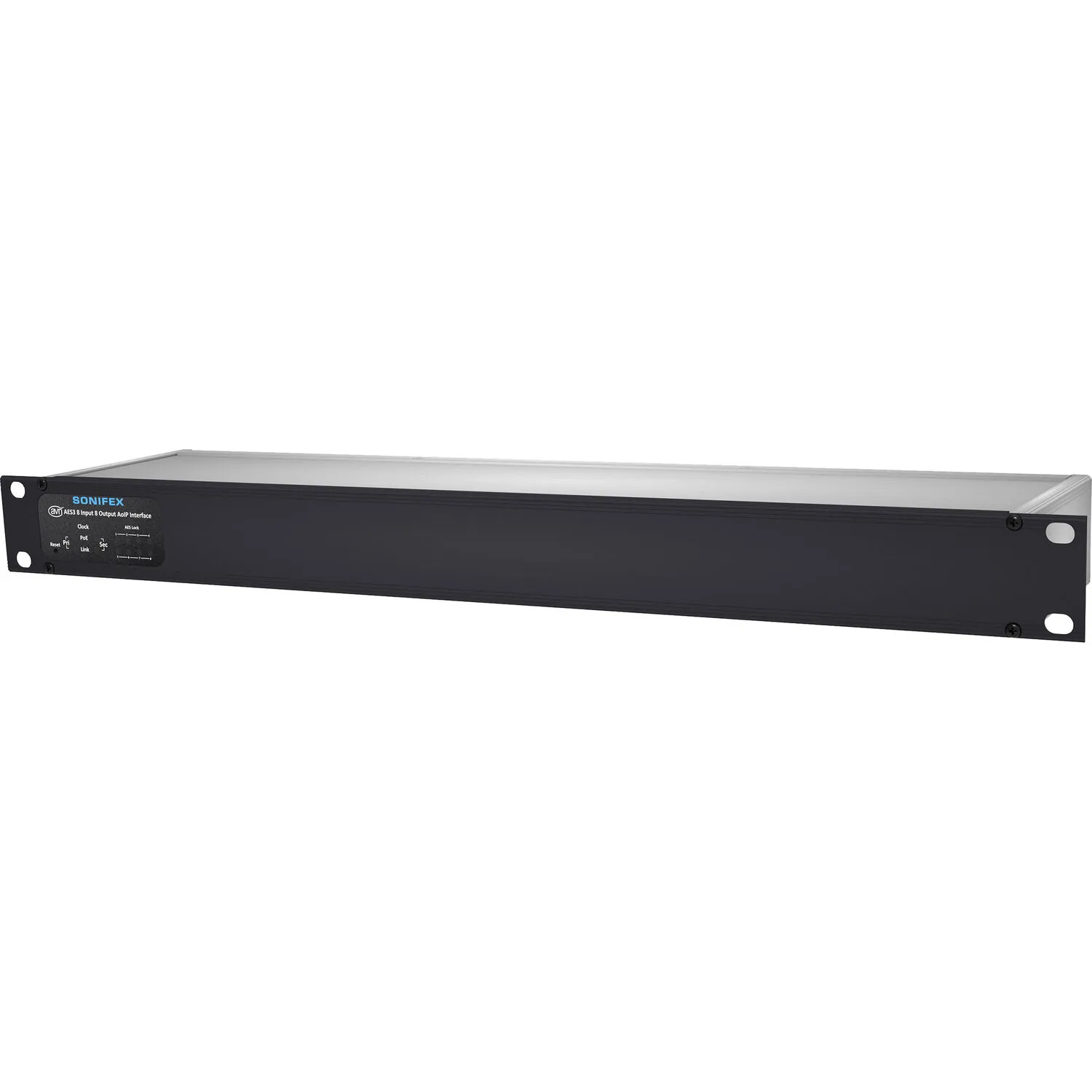

Sonifex AVN-AESIO8-DNT 8x8 Dante Audio Interface (XLR)

Designed for broadcast, live production, and professional AV environments, the Sonifex AVN-AESIO8-DNT provides a cost-effective and dependable solution for transporting low-latency audio between AES3 and Dante network domains. The unit incorporates dual RJ45 1Gb/s Ethernet ports that accepts both power and data to the Dante network. These primary and secondary ports can be configured in redundant mode and switched mode for full network redundancy or daisy-chaining capabilities.

Configuration and routing are managed via Dante Controller, offering a familiar and intuitive workflow for AV professionals and system integrators. The platform is designed for straightforward deployment, with minimal setup required beyond network configuration and level alignment. All AES3 audio connections are provided via high-quality Neutrik XLR connectors and offer secure, dependable connectivity for professional audio applications. Each input can accept sample rates from 32 to 192 kHz, which will be converted to the Dante system sample rate.

Benefits

• Dante AoIP
• 8 x balanced digital stereo AES3 inputs on Neutrik XLR connectors, supporting input rates of 32 to 192 kHz
• 8 x balanced digital stereo AES3 outputs on Neutrik XLR connectors, output matches Dante system's sample rate
• 2 x RJ45 connectors (1Gb/s Ethernet port) allowing the unit to operate in redundant or switched modes
• PoE and link LED status indicators for each Ethernet port
• Front-panel clock, PoE and link LED status indicators
• Front-panel AES3 lock LED status indicators for each input
• Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy

Additional Details

• Alternative USB-C power input, when PoE is unavailable
• Rear-panel mount for single/top locking USB-C cables
• Rear-panel cable tie mount to provide strain relief
• Configuration using Dante Controller
• Dante Domain Manager compliant
• AES67 operation
• 1 RU 19" rackmount aluminum chassis
