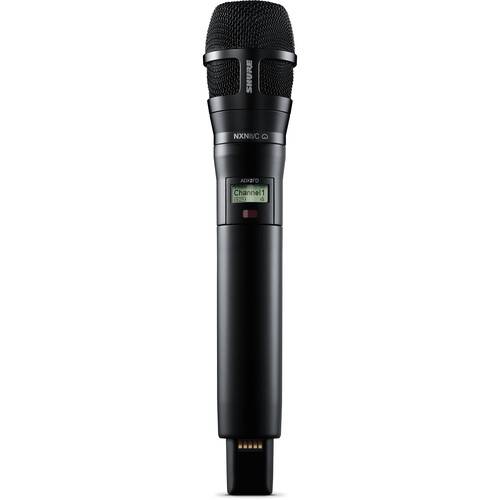

Shure ADX2FD/N8CB Digital Handheld Wireless Microphone Transmitter with Nexadyne 8/C Cardioid Capsule (G57: 470 to 608 + 614 to 616 MHz, Black)

The black Shure ADX2FD/N8CB is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters. The transmitter also features Frequency Diversity for seamless audio in even the most challenging RF environments.

The ADX2FD/N8CB comes equipped with a Nexadyne 8/C dynamic cardioid capsule featuring an innovative Revonic dual-transducer design that uses two separate, but interdependent sets of diaphragms, voice coils, and magnets. This unique technology gives this dynamic mic a condenser-like clarity with a crisp, yet natural high-end and plenty of detail-allowing vocalists to worry less about mic technique and instead focus on delivering powerful performances. The cardioid polar pattern reduces off-axis pick up, for less bleed from other sources and fewer feedback issues.

The transmitter operates in a single 140 MHz ultrawide UHF bandwidth. It provides up to 9 hours of operation on an SB920A rechargeable battery, with a transmission range up to 330' and a selectable 2/10/50mW RF output power. With a durable, moisture-resistant, lightweight aluminum case, the ADX2FD/N8CB transmitter delivers pristine audio quality, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.

• Frequency Diversity enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupted audio.
• Single-carrier mode is available if Frequency Diversity is not required.
• Switchable RF Power Levels: 2/10/50mW (single-carrier mode) and 2 x 2/10/20mW (Frequency Diversity mode).

• ShowLink technology allows the ADX2FD transmitter to execute an automatic, synchronized frequency change in a matter of milliseconds, ensuring clean, uninterrupted transmission, even in the most challenging RF environments.
• You can also make instantaneous remote adjustments to your ADX2FD transmitter settings (RF output, gain, mute, and more) when it is difficult or impossible to access the transmitter.

• Shure's Nexadyne Revonic system is an innovative dynamic microphone design that uses two matched dynamic transducers, working in conjunction, to provide more opportunity for both greater sound quality and the rejection of unwanted signal.
• Wiring the transducers out-of-phase cancels mechanical vibration, so self-noise is actively zeroed out. This makes traditional pneumatic shockmounts unnecessary, and allows the transducers to be optimized for acoustic performance.
• Vocal performers will experience natural and vivid clarity when performing—enabled by a cartridge design that optimizes signal output acoustically, producing more of the desired sound source and less environmental and handling noise.
• Engineers will receive stronger and clearer output, resulting in fewer EQ corrections that are often necessary with other mics to retain vocal clarity within the mix.
• The cardioid polar pattern provides focused, yet forgiving, audio capture centered on the performer in front of the mic—reducing bleed from other sources and on-stage monitors for clearer sound.
• The interchangeable capsule design allows you to replace the Nexadyne 8/C capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including the Nexadyne 8/S (supercardioid), KSM8, KSM9, SM58, Beta 58A, Beta 87A, and Beta 87C capsules.

• The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
• Automatic Gain adjusts the mic input level for you.
• The power button conveniently doubles as mute switch, while preserving RF lock.
• Frequency and power lockout functions prevent accidental or unauthorized changes during events.
• A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
• Offset function lets you balance mic levels when assigning multiple transmitters to a single receiver slot.Adjustment range: -12 to +21 dB.
• Two transmission modes: Standard, for optimal coverage and High-Density, for maximum system channel count and robust coverage.

• Operates for up to 9 hours in single-carrier mode at 10mW on included SB920A rechargeable lithium-ion battery.
• Runs up to 6.5 hours in Frequency Diversity mode at 10mW x 10mW and up to 5 hours in single-carrier, high-power mode at 50mW.
• Rechargeable battery offers intelligent power management with precision metering in hours and minutes, and zero memory effect.
• External charging contacts allow for docked battery charging.
• SBC220 two-bay and SBC840 eight-bay networked chargers (both available separately) allow for remote power monitoring via Shure’s Wireless Workbench software.
