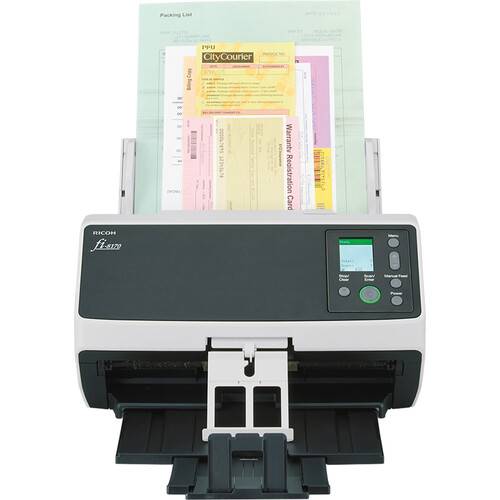

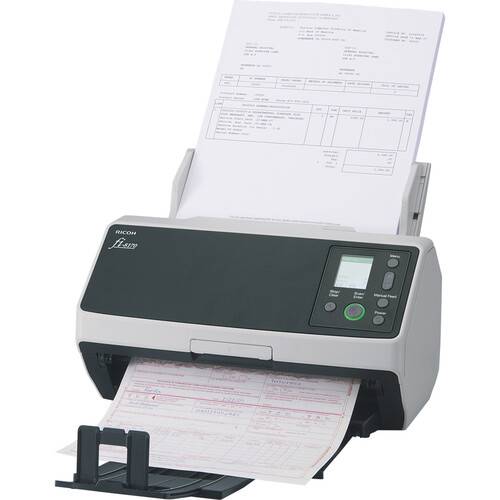

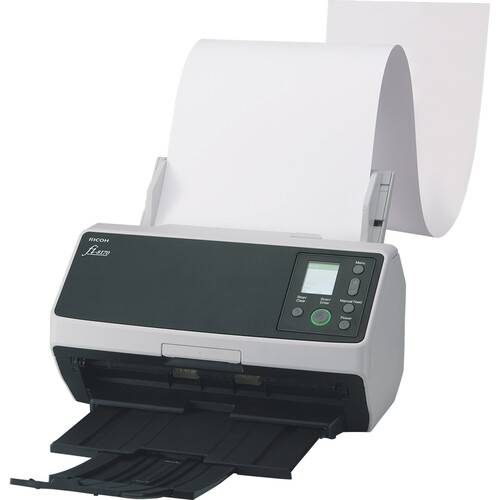

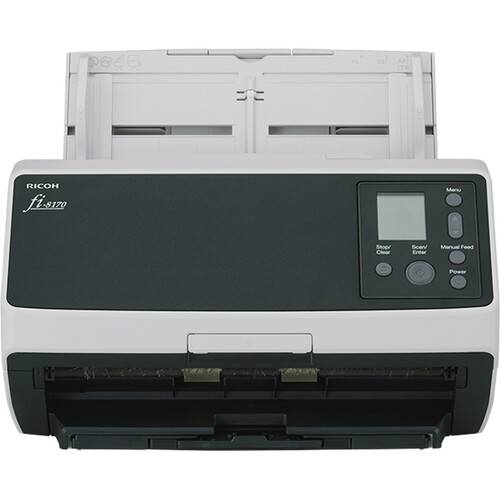

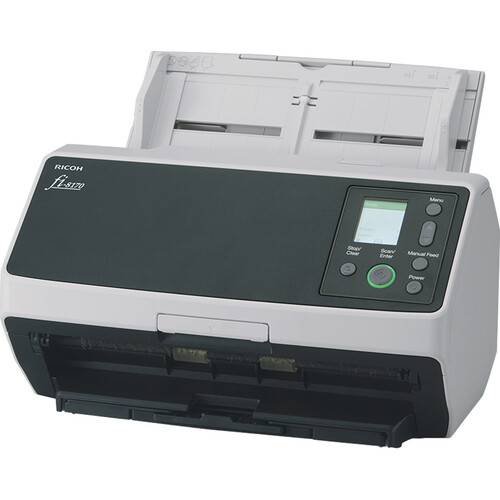

Ricoh fi-8170 Document Scanner

The compact Ricoh fi-8170 Document Scanner is designed for demanding workflows in small and large organizations. Featuring proprietary Clear Image Capture (CIC) technology, it delivers high-quality images to meet the digital needs of companies. CIC technology combines the reliability and flexibility of Contact Imaging Sensor (CIS) hardware with an industry-leading, proprietary image processor. CIS provides precise, crisp images and OCR accuracy rates while also removing unwanted watermarks and artifacts.

Another key feature is advanced paper feeding. A large 100-page automatic document feeder, improved feeding mechanisms, and error-free capture of 140 images per minute make the fi-8170 a simple-to-operate and highly efficient scanner. To ensure documents are safely captured, the feeding technology uses automatic separation control to sense paper weights and make necessary adjustments to consistently separate documents and ensure a problem-free feed.

The fi-8170 is built to last. It's made with strong urethane rollers, heavy-duty motors, a sturdy frame, and durable consumables. It's designed to efficiently accommodate your needs regardless of job size, including during seasonal peaks and when there are heavy backlogs.

Included Software / Drivers

PaperStream IP

Compatible with all major document management software packages, PaperStream IP (PSIP) is a TWAIN/ISIS compliant driver that cleans up and optimizes scanned images without any configuration.

PaperStream Capture

Take advantage of powerful indexing and sorting features. PaperStream Capture puts your document in the right location for great organization and fast retrieval. It also offers both 2D and 1D barcode support.

PaperStream Clickscan

Clickscan is an easy-to-use capture software for virtually any business. It has a simple scanning interface and uses a 3-step workflow: scan, select destination, and save.

Flexible Connectivity

Choose PaperStream IP Net for flexible, adaptable capture architectures, or PaperStream NX Manager for centralized, server-based capture.

Other Features

Paper Weight (Thickness)

• Paper: 5.3 to 124 lb / 20 to 465 g/m²
• Booklet: 0.276" / 7mm or less
• Plastic Card: 0.055" / 1.4mm or less

ADF Capacity

• 100 sheets (letter 20 lb or A4 80 g/m²)

Expected Daily Volume

• 10,000 sheets
