RDL DB-CIJ3 Consumer Input Jacks (Mono, Black)

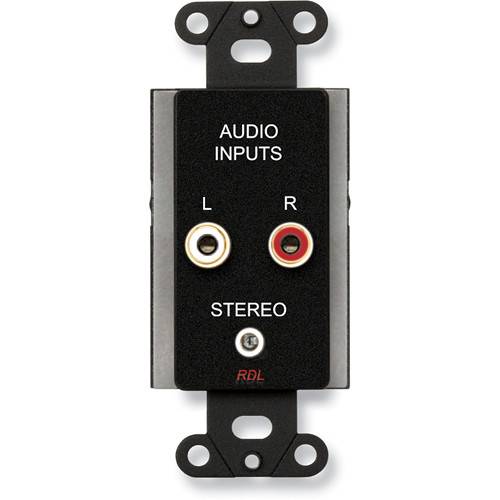

The black, monoDB-CIJ3 Consumer Input Jacksfrom RDLare suitable for installations requiring the passive mixing of two unbalanced line-level audio sources to feed a mono balanced or unbalanced audio line. The front panel features two gold-plated phono jacks and a single stereo 3.5mm mini-jack intended for mono consumer-level sources. An input signal may be connected to either the phono jacks or the mini-jack. The left- and right-signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kilohm or higher input impedance line-level module or equipment input.

Stereo inputs to mono output

Stereo inputs on RCA jacks and stereo mini-jack

Unbalanced to balanced conversion without gain

Transformer isolation for unbalanced line inputs

Hum cancellation on unbalanced line inputs

Line-level output to feed 10kΩ equipment inputs

Output connections on the detachable terminal block

Mix stereo inputs to mono, balanced

Decora compatible

Black finish
