Orbbec Gemini 335Le Depth Camera

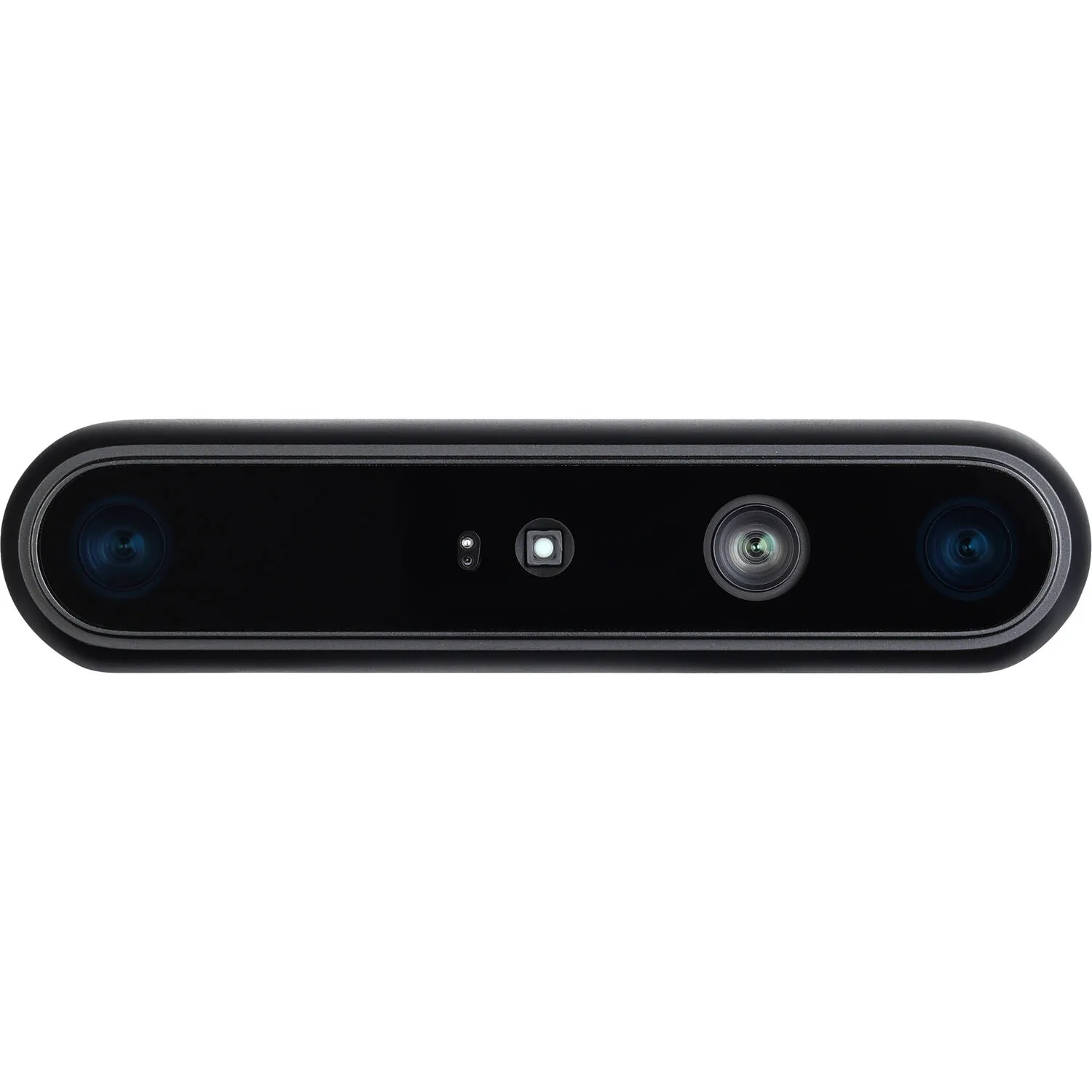

The Orbbec Gemini 335Le Depth Camera offers industrial-grade active infrared imaging in a rugged form factor. It uses a Visible+NIR-Pass depth filter to deliver resolutions up to 1280 x 800 at 60 fps. A built-in IMU sensor and FOV of 94 x 65° at 6.6' help the camera readily process its environment. An Ethernet connection is available via an M12 X-coded port with PoE support. An M8 A-coded port is also available for DC power. These sturdy connections provide stability in high-vibration and long-distance scenarios, making the camera ideal for tough environments. It boasts an IP67 rating for stellar dust and water resistance.

Deployment is made easier thanks to Orbbec's open-source SDK and the ultra-low latency of the camera's ASIC MX6800 chip. Multi-camera sync and PTP timing are also featured. This camera has a wavelength sensitivity of 850nm.

Applications

Autonomous Mobile Robots

The Gemini 335Le's design ensures reliable performance in challenging environments, such as varying light conditions, or cluttered and electromagnetically noisy factories, enabling AMRs to perform accurate obstacle avoidance, navigation, and mapping.

Robotic Arms

This compact and motion-compatible camera enhances robotic arm efficiency in tasks such as dimensioning, bin picking, parcel handling, palletizing, and depalletizing. It can reliably detect challenging objects, even in demanding industrial environments.

Forklifts

The camera provides reliable depth data in challenging and dynamic forklift environments, thanks to its rugged, shock-resistant design and sunlight tolerance. It can be mounted on different forklift positions such as the mast or between the forks to aid in obstacle avoidance and pallet recognition, ensuring safe and efficient operations.
