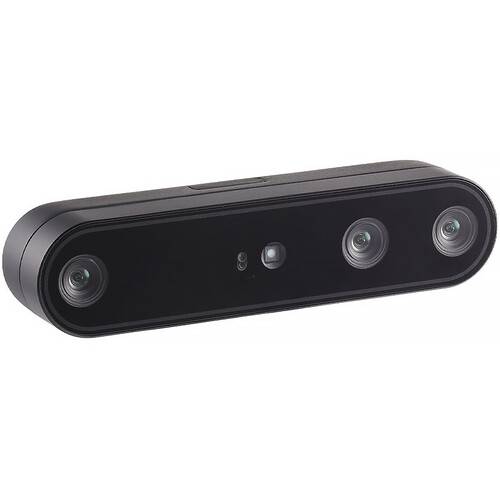

Orbbec Gemini 2 L 3D Camera

The Gemini 2 L 3D Camera from Orbbec is based on Active Stereo IR technology with a baseline of 100mm and is equipped with Orbbec's custom ASIC processor for high quality depth processing. It delivers resolutions of up to 1280 x 800 at 5, 10, 15, 30, and 60 fps. It has a wide 101° diagonal field of view and operates using a single USB-C 3.2 Gen 1 cable that delivers power and data. The camera also has a proximity sensor for close distance single point ranging, which helps eliminate any blind spots in depth measurements within the entire 32.8' range, while an internal IMU enables motion and position tracking.

The Gemini 2 L is easy to set up and operate with the Orbbec SDK and delivers accurate and reliable data in various lighting conditions from pitch black to semi-outdoor. Also featured are rolling and global shutters, plus wavelength sensitivity up to 850nm and IP5X protection.

• Global shutter for RGB and IR cameras
• Wide field of view at 91° horizontal and 66° vertical
• High quality depth data output from 0.82 to 32.8'
• Up to 60 fps at 640 x 400 and 30 fps at 1280 x 800 depth resolutions
• USB-C for power and data connectivity
• Internal MIU
• Multi-camera synchronization and IMU supported
