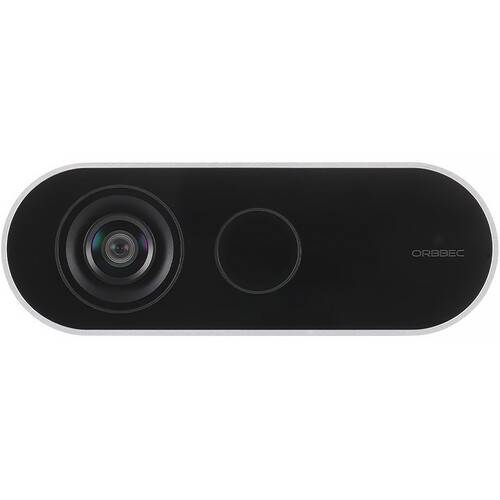

Orbbec Femto Bolt Depth Camera

Designed for AI developers using 3D vision applications, the Femto Bolt Depth Camera from Orbbec is a high-performance device with multi-mode depth and RGB cameras that deliver resolutions up to 3840 x 2160 at 5, 15, 25, and 30 fps. Its 1MP sensor delivers a 120° FOV, while HDR functionality helps preserve details. This camera uses Microsoft's ToF technology and has operating modes and performance that are similar to the Microsoft Azure Kinect and Orbbec Femto Mega. Also featured are rolling and global shutters, wavelength sensitivity up to 850nm, and a USB-C 3.2 Gen 1 interface that delivers power and data. The camera may also be powered using an included AC adapter.

• Depth camera with 1MP ToF sensor and 120° FOV
• 4K RGB with HDR
• IMU: 6DoF
• Data interface: USB-C 3.2 Gen 1
• Power: USB-C/DC, 4.35W average
• Trigger/Sync Control
• SDK: Windows or Linux

• High resolution and high accuracy across a wide range of operation
• Wide Field of View covers a large area
• HDR (High Dynamic Range) function for RGB preserves details
• Easy camera setup with a rich set of APIs for various applications

• Depth and RGB cameras and IMU in a single device
• Combined data and power with USB-C 3.2 Gen 1 connection
• High-precision synchronization trigger control
