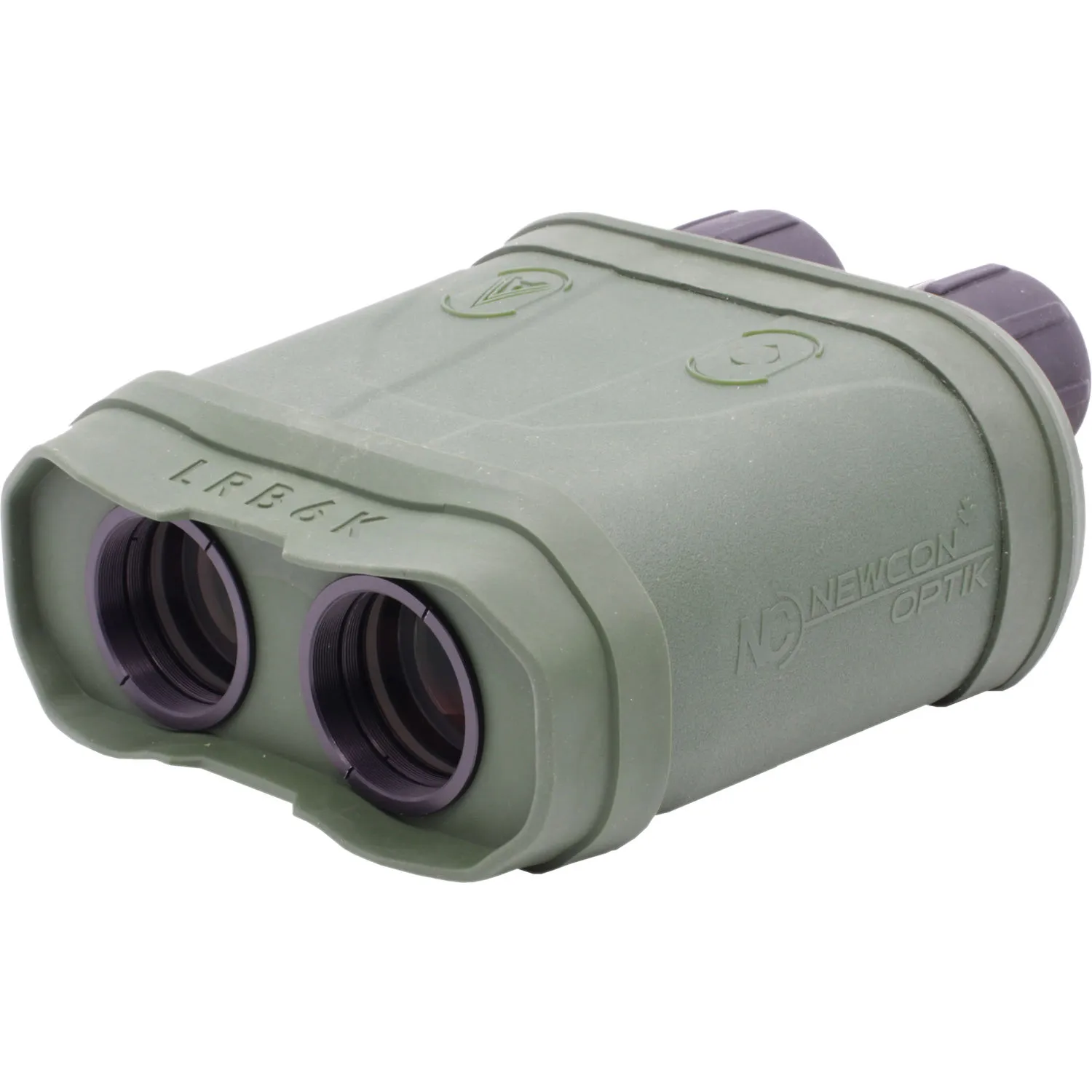

Newcon Optik 7x42 LRB 6K Laser Rangefinder Binocular

The LRB 6K 7x42 Rangefinder Binocular from Newcon Optik is a handheld electro-optical device built for measuring distances up to 3.7 miles (6 kilometers) away, with accuracy to within 3.3 feet. The configuration of this laser rangefinder binocular integrates a built-in three-axis compass and inclinometer to calculate a range of useful data about the target. Fully multicoated optics, two selectable reticle options, MIL-STD form factor, and an LED display help make the LRB 6K a well-equipped rangefinder for patrol, surveillance, and reconnaissance operations.

The LRB 6K's RS-232 and USB interface ports allow the device to be operated remotely, export stored data, and communicate with external GPS systems and ballistic computers. Further enhancing the construction features are a shockproof chassis and weatherproof sealing that comply with MIL-STD-810G performance standards.

Optical Performance

• 7x magnification, 42mm objective
• Field of View: 6°
• Apparent Angle of View: 42°
• 20mm eye relief, ±5 diopter adjustment range
• Fully multicoated optics
• 1550nm Class 1 eye-safe laser
• Measurement Range: 6562 yd (6000m), with ±1.1 yd (1m) accuracy

Use and Handling

• Digital magnetic compass
• Built-in inclinometer
• RS-232 and USB ports for data transmission
• Selectable reticle patterns
• Measurement displayed in yards/meters
• 1/4"-20 threaded mount for tripod
• Low-battery indicator
• Single 2CR5 battery operation

Construction Details

• MIL-STD-810G weatherproof housing
• -40 to 140°F(-40 to 60°C) operating temperature
• Measures: 8.3 x 6.3 x 3.3
• Weight: 58 oz
