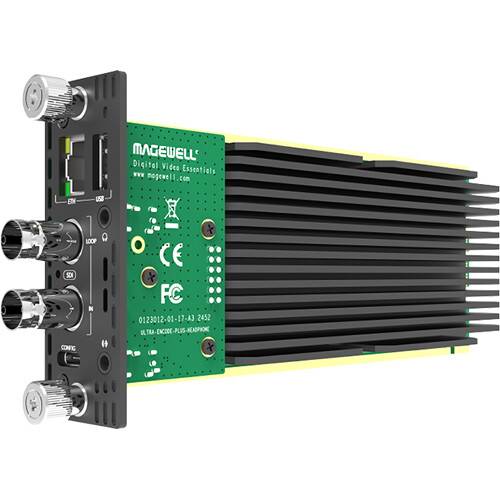

Magewell Ultra Encode SDI Plus Module

The Ultra Encode SDI Plus Module from Magewell accepts up to DCI 4K30 6G-SDI signals and provides 4K SDI loop-through and high-bandwidth NDI and IP encoding and output up to DCI 4K30. The hot-swappable module integrates directly with the Magewell Modator 2 RU rack-mountable chassis, and its built-in interface allows control via the Modator's touchscreen.

With 16-channel SDI and 8-channel NDI-embedded audio, a USB-C port for configuration, and very-low latency, this Ultra Encode module is designed for professional AV applications. The module also features a built-in 128GB microSD card to record your programs, the Ethernet port can be used to record to a NAS, and a USB-A port can support an external flash drive for recording. The USB-A port can also be used for a separately available USB 4G/5G modem for mobile connectivity.

Additional Details

• Up to 4096 x 2160p30 6G-SDI input and loop-through output
• Up to 4096 x 2160p30 NDI encoding and output
• Scaling support
• Max encoding bit rate: 62 Mb/s (NDI|HX3), 32 Mb/s (other protocols)
• 16-channel SDI-embedded audio input and output
• 8-channel NDI-embedded AAC audio output
• Input audio via 3.5mm line input
• Allow simultaneous six sessions over multiple streaming protocols
• Record to internal storage (128GB), external USB storage, or network attached storage (NFS/CIFS)
• Supports live streaming and recording scheduler
• Configure through the touchscreen of Magewell Modator chassis, Web GUI, or Control Hub

Connectivity

• 6G-SDI video input port
• 6G-SDI video loop output port
• RJ45 Gigabit Ethernet port
• USB-C configuration port
• USB-A port
• Modator 2 RU interface for control

Streaming

• Natively supports streaming to Twitch, YouTube, Facebook, WOWZA
• Supports streaming protocols: RTSP, RTMP/RTMPS, SRT Caller/SRT Listener, NDI HX2/NDI HX3, HLS, TS over UDP/TS over RTP. TVU ISSP
• Supports streaming to six destinations simultaneously
• One NDI|HX3 session exclusively
• Supports specifying a video stream and an audio stream for each streaming session
• Supports live streaming scheduling
• NDI 6.1.1 support
