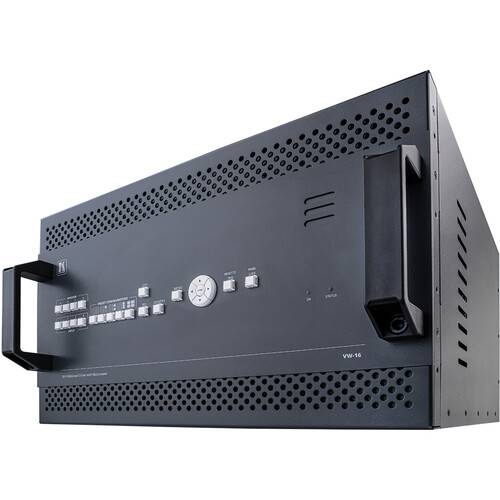

Kramer 4x4 Video Wall Driver

The Kramer VW-16 4x4 Video Wall Driver is an advanced 4-input and 16-output video processor, offering a video wall driver with multiviewer features, scaling, customized screen layouts, and fast, clean video switching between inputs. The unit also features audio switching and incorporates an analog audio output in addition to the embedded HDMI audio. It offers a user-friendly web UI, RS-232, RS-485, and RS-422 control options, and includes bezel correction, picture adjustment options, and HDCP and EDID configuration.

• Fast switching between input channels and combined multiple source images on video wall
• Suitable for any wall configuration with up to 16 displays: 4x4, 2x8, 8x2, 5x3, etc.
• Handles HDMI 2.0 signals with Deep Color and HDCP 2.2 sources
• Input and output resolution up to 4K @ 60 Hz, 4:4:4 color sampling
• Scales up and down to any resolution: up to 4K @ 60 Hz, 4:4:4 color sampling
• PiP, PoP, quad-view, and multiple customized screen layout configurations on the videowall
• Rotation (90 and 270°) in full-screen layout
• Bezel correction
• Stereo audio output
• Control by web UI, RS-232, RS-485, RS-422, and telnet
• Firmware upgrade via USB port
• Dual built-in power supply
