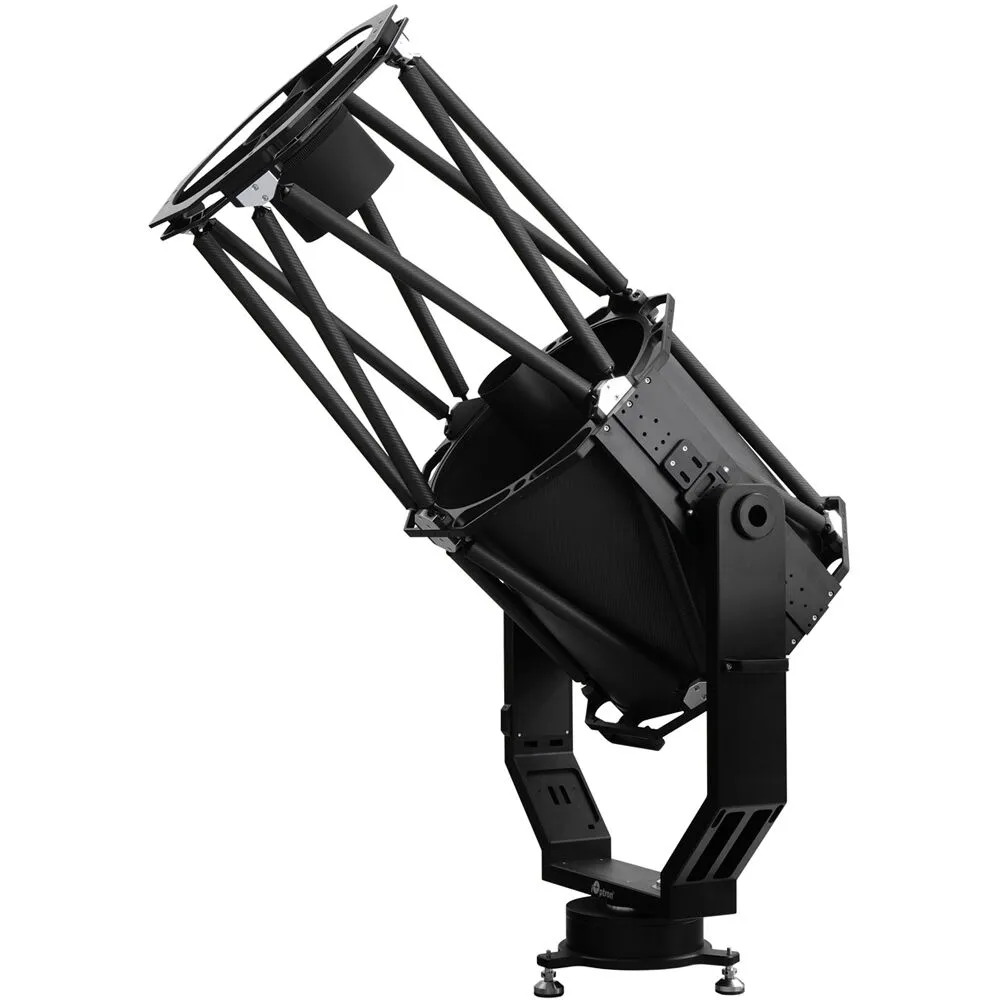

iOptron HAZ130 Dual Strain Wave GoTo AZ Mount

Featuring a strong all-metal fork that can hold truly large optical tube assemblies, the iOptron HAZ130 Dual Strain Wave GoTo AZ Mount combines precise strain-wave gearing with GoTo pointing and alt-azimuth tracking. Its dual SWG drives support payloads up to 132 pounds and feature the iOptron electronic friction braking system for planned or unplanned power interruptions. The Go2Nova 8411 handset lets you aim at more than 212,000 celestial objects and features an OLED display. The HAZ130 requires a mounting base of at least 17.7 inches with three M10 threaded holes.

Mount

• Motorized alt-az mount
• Dual mount capability
• 132-pound payload
• Compact design: Stands just 10" (25.4 cm) tall
• Die-cast aluminum chassis
• Dual adjustable Losmandy-D dovetail saddles
• Position limit on ALT to prevent scope over slewing
• Built-in GPS receiver
• Adjustable base with a high-precision leveling indicator
• Built in zero position search and locator
• USB-C port for firmware upgrade and computer control
• Powered by AC adapter

Go2Nova 8411 Controller

• Easy-to-navigate menu-driven interface
• 212,000+ celestial objects
• Automatic GoTo and tracking
• Slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX
• Large 8-line, 21-character OLED screen
• Firmware updates via the Internet
• Temperature range: 14-122°F
