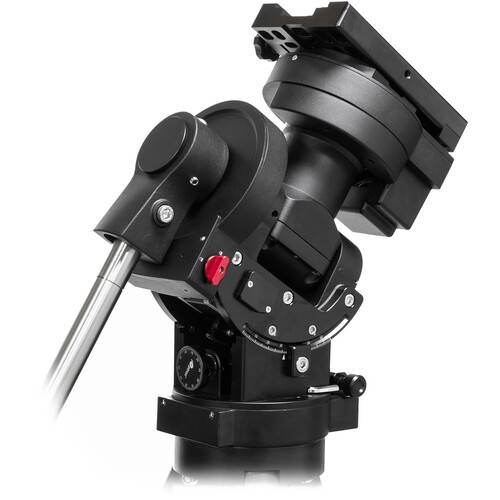

iOptron CEM70EC2 Mount Head with iPolar Scope

The iOptron CEM70EC2 Mount Head is a center-balanced equatorial mount with a 70 lb payload and dual axes high-resolution encoders allowing for increased tracking accuracy. Retaining the inherent properties of the center balance design, this relatively compact mount provides an efficient and accurate portable mount. With precise GOTO pointing and accurate tracking, it is suitable for observers and imagers alike. It offers advanced operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (with levers large enough to use with gloves), cable management, and much more.

Note:

The included AC adapter is for indoor use only.

Key Features

• Center-balanced equatorial mount (CEM) for maximum payload with natural stability
• Suitable for visual observation and astrophotography
• Payload of 70 lb with the mount weight of 30 lb
• Easy-to-use gear clutches
• Precision altitude and azimuth adjustment
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
• iPolar electronic polar scope
• Go2Nova 8410 controller with Advanced GOTONOVA GOTO Technology with a built-in heater
• High-precision tracking with low periodic error (PE <0.3 arcsec rms)
• Dual axes real-time periodic error correction (RPEC)
• 32-channel GPS
• USB 3.0 powered connection
• Integrated ST-4 autoguiding port
• Advanced cable management system
• Spring-loaded 8" Vixen/Losmandy dual saddle
• TheSky Imaging Edition software for Windows and macOS

Additional Features

• 2.33 payload/mount weight ratio
• All-metal construction
• Azimuth Adjustment: ± 4°
• Right Ascension Worm Wheel: 151mm diameter, 248 teeth
• Declination Worm Wheel: 151mm diameter, 248 teeth
• Worm: 21.2mm diameter
• Right Ascension Axle: 55mm diameter, steel
• Declination Axle: 55mm diameter, steel
• Right Ascension Bearings: 80mm diameter
• Declination Bearings: 80mm diameter
• Mount Base Size: 152mm diameter
• Precision Stepper Motor (128 micro-step)
