GLOBAL DYNAMICS UNITED 80mm Touch N Go System

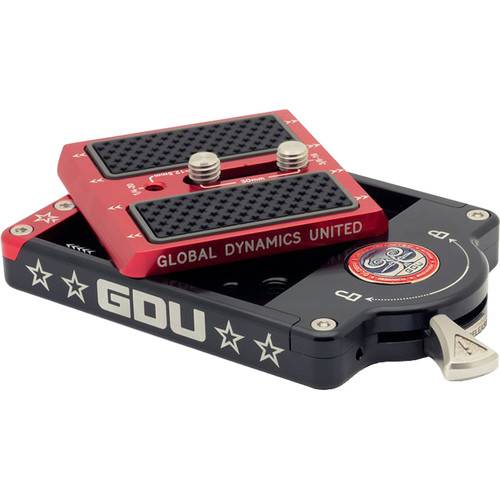

The Global Dynamics United 80mm Touch N Go System is well suited for use with RED DSMC2 and other mid-size cameras. It consists of a spring-loaded QR plate receiver and the QR plate. The receiver features a spring-loaded latching system to hold the plate securely and a safety catch to help prevent accidentally unlocking the plate. 17 x 3/8"-16 and 12 x 1/4"-20 threaded mounting holes on the bottom of the receiver provide a variety of mounting options.

The QR plate features rubber pads on the top of the plate and includes two captive 3/8"-16 tie-down screws. The screws slide within a 1.5" long slot, allowing you to adjust the position of your camera on the plate. The anodized machined aluminum plate is wear and corrosion resistant, and it has grooves cut into the underside to reduce weight.

The QR receiver features a spring-loaded latching system with a safety catch to help prevent the plate from accidentally being released.

The plate has grooves machined into the bottom of the plate. These grooves reduce the overall weight of the plate, while increasing its resistance to flexing.

The screw slot for the 3/8"-16 screws is 1.5" long and provides a maximum on-center distance of 1.18" between the two screws.
