Crestron Flex Tabletop Large Room Conference System for Microsoft Teams Rooms

Set up your conference room for Microsoft Teams Rooms conferencing with the Flex Tabletop Large Room Conference System from Crestron. This hardware plus software solution is designed to enhance your large conference room with everything you need to run Microsoft Teams Rooms software with a single- or double-display setup.

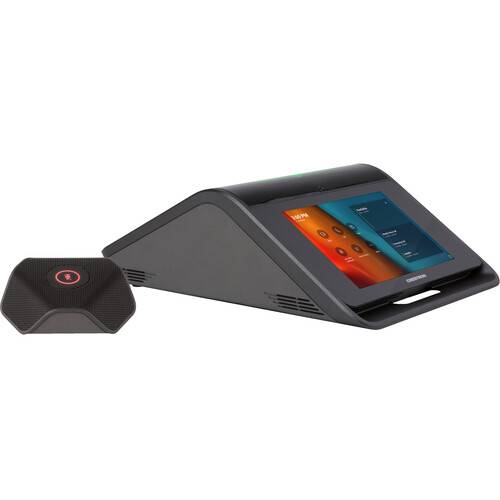

The solution includes a tabletop conferencing device with a 7" touchscreen with a Crestron UI, a Teams Rooms UI, a bracket assembly with a mini PC running Windows 11 IoT with Microsoft Teams Rooms preinstalled, along with HDMI, USB, and Ethernet cables and adapters. Also included is an extension microphone pod that extends the audio pickup range to 20'. It can all be controlled via the XiO Cloud service with a separately available subscription.

Designed to enhance the Crestron Flex system, the system features Windows 11 IoT and Microsoft Teams Rooms conferencing software preinstalled that enables audio and video connectivity for easy collaboration and content sharing.

The included CCS-UC-1-T-V Crestron Flex Tabletop Conference device provides a powerful conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. Its large 7" HD color touchscreen provides easy control and both a Crestron UI and Teams UI, and its integrated AEC-enabled USB speakerphone provides full-duplex wideband audio performance.

The CCS-UCA-MIC extended microphone pod is designed for the Flex conferencing system to extend 360° pickup to 20'. It features a mute button and LED indicator, and it can be daisy-chained with an optional second mic.

The included UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device or touchscreen to the UC Bracket Assembly.

High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras, including the IV-CAM-P12-B, IV-CAM-P12-W, IV-CAM-P20-B, IV-CAM-P20-W, IV-CAM-I12-B, IV-CAM-I20-B, and IV-CAM-I20-W models. Microsoft Teams Rooms software-certified third-party cameras are also compatible with the system.

This upgrade enhances the Crestron Flex system, which is designed for mass deployment in any-sized corporate, university, medical, military, or government facility, offering enterprise-grade security.

The XiO Cloud service is an IoT cloud-based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. It allows for system alerts, network management, provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows software update.
