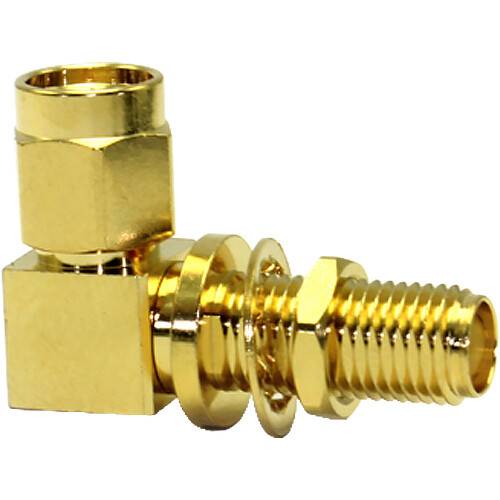

COAX Connectors SMA Right-Angle Bulkhead Jack to Plug Adapter (Gold-Plated Body & Center Contact)

This SMA Right-Angle Bulkhead Jack to Plug Adapter from COAX Connectors features a gold-plated center contact and body. The connector has an impedance of 50 ohms with screw together couplings that have an IP rating of 40 when properly mated. The SMA screw thread connectors are suited to a wide variety of industries from high-performance applications in defense and aerospace to general purpose industrial.

• Impedance: 50 ohms
• Frequency range: 10 GHz
• Dielectric withstand voltage: 750 Veff
• Insulation resistance: 5000 Megohms
• Design standard: IEC 60169-15
• RoHS3 compliant: yes
• Mating cycles: 250
• Contact retention: 27 N min
• Max panel thickness: 5mm
• Mating force: 23 Ncn
• Un-coupling force: 23 Ncn
• Operating temperature: -67 to 311°F
• IP rating (mated): IP40
• Center contact: phosphor bronze
• Outer contact: brass
• Insulator: PTFE
• Center contact plating: gold
• Outer contact plating: gold
