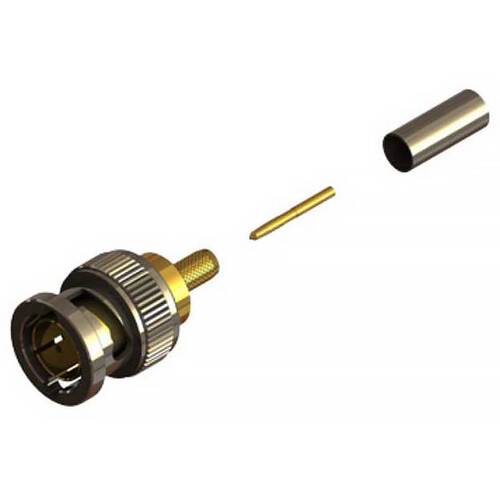

COAX Connectors BNC Ultra-HD Crimp/Crimp 12G Plug for Belden 1855A/4855R (100-Pack)

This 100-pack of BNC Ultra-HD Crimp/Crimp 12G Plug for Belden 1855A/4855R connectors from COAX Connectors is suitable for use at frequencies of 12 GHz and beyond. When tested, these connectors have shown low-loss performance up to 18 GHz. Supporting 12G signals, it is compatible with Belden 1855A/4855R, as well as similar cables. Typical applications are broadcast, including Ultra-High Definition (4K), telecom, instrumentation, security, mil/aero, and many others.

• Operating temp: -67 to 311°F
• IP rating (Mated): IP 64
• Impedance: 75 ohms
• Frequency: 0-18 GHz
• Dielectric W/V: 1500 Veff
• Insulation res: 5000 Megohms
• Contact Retention: 10 N min
• Cable retention: 100 N min
• Mating cycles: 500

• -27.56 dB @ 3.0 GHz
• -21.59 dB @ 6.0 GHz
• -20.15 dB @ 12.0 GHz
• -20.94 dB @ 18.0 GHz

• Belden 1855A
• Belden 1865A
• Belden 4855ANH
• Belden 4855P
• Belden 4855R
• Canare L-2.5CFB
• Canare L-2.5CHD
