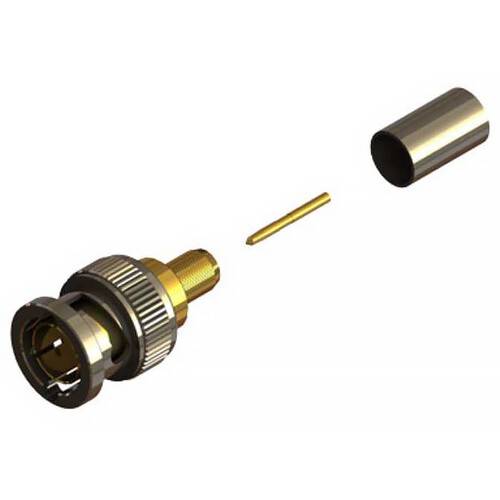

COAX Connectors BNC Ultra-HD Crimp/Crimp 12G Plug for Belden 1505A (100-Pack)

This 100-pack of BNC Ultra-HD Crimp/Crimp 12G Plug for Belden 1505A connectors from COAX Connectors is suitable for use at frequencies of 12 GHz. Supporting 12G signals, it is compatible with Belden 1505A, as well as similar cables. Typical applications are broadcast, including Ultra-High Definition (4K), telecom, instrumentation, security, and many others.

• Operating temp: -67 to 311°F
• IP rating (mated): IP 64
• Impedance: 75 ohms
• Frequency: 0-18 GHz
• Dielectric W/V: 1500 Veff
• Insulation res: 5000 Megohms
• Contact retention: 10 N min
• Cable retention: 200 N min
• Mating cycles: 500

Performance

• -30.39 dB @ 3.0 GHz
• -23.90 dB @ 6.0 GHz
• -23.28 dB @ 12.0 GHz
• -20.30 dB @ 18.0 GHz
