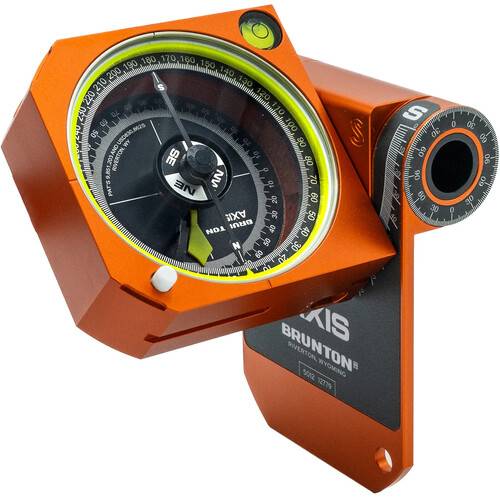

Brunton Axis 0-360 Pocket Transit (Orange)

The orange Axis 0-360 Pocket Transit from Brunton is designed for easier geological measurements. Its innovative dual-axis, hollow hinge allows for intuitive, efficient, and accurate measurements of planes, lines, bearings, and vertical angles.

Only one measurement configuration is needed for strike & dip, trend & plunge, and bearing and vertical angle, making your measurements more accurate and efficient. The innovative lid protractor and rotation around the minor axis enables accurate, simultaneous measurement of trend & plunge on any surface, including overhangs.

The axis employs a rare Earth magnet on a sapphire jewel suspension and features an adjustable needle locking mechanism, high-visibility north and south markings, and induction damping for quick stabilization. The housing is hard anodized billet aluminum and is O-ring sealed to provide a waterproof performance.

Function and Handling

• Sapphire jewel bearing, 0-360° scale
• Dual-axis hinge for quick, easy measurements of planes, lines, bearings, and vertical angles
• Adjustable needle-locking mechanism
• Induction dampened, low center of gravity needle
• Hard-anodized aluminum billet body
• Adjustable magnetic declination
• Horizontal- and vertical-axis bubble levels
