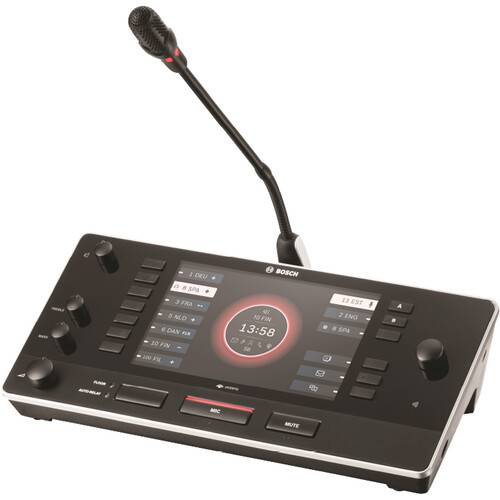

Bosch DICENTIS DCNM-IDESK Interpreter Desk

The Bosch DICENTIS DCNM-IDESK Interpreter Desk is a single-user interpreting station designed for intuitive, ergonomic operation. Its clearly positioned controls help reduce operating mistakes, while the interface presents only relevant information, so interpreters can view the information needed for the interpreting process at a glance. The desk supports up to 100 languages and fully complies with ISO 20109.

Designed for flexible interpreter booth configurations, the DCNM-IDESK supports up to ten desks per booth and offers hot plug-and-play operation. Automatic external headset microphone selection simplifies headset use, while hearing protection is provided for predefined headphones and headsets. Tactile feedback is available for all controls, with audible feedback and tactile pimples supporting visually impaired users. Language and system settings can be accessed directly from the interpreter desk's configuration menu.

A high-contrast 7-inch display provides access to language selection and status information. Seven relay language preset buttons indicate the selected preset along with language number, abbreviation, and quality. Dedicated A, B, and C language output controls display output selection and state as well as language number, abbreviation, and engaged status. A language overview function displays the quality of all available languages, while a rotary control with integrated push button provides convenient adjustment of settings. Additional display information includes a real-time clock, selected loudspeaker language, audible feedback status, and microphone or external headset selection.

Dedicated physical controls include rotary adjustments for headphone volume, bass, and treble, along with a separate loudspeaker volume control. Floor/auto-relay selection, microphone, and mute buttons provide direct access to essential interpreting functions. LED indicators show floor/auto-relay status, red microphone on-air status, and green "booth not in use" status, while an additional red on-air LED is positioned at the rear of the desk.

Three 3.5mm TRRS headphone/headset sockets are located on the left, right, and bottom sides for flexible connection. Two RJ45-compatible connections carry system communication and power, supporting loop-through cabling with DICENTIS System cables or star cabling using standard Cat 5e or better cables and PoE+ switches. The desk also includes a USB connector for future use and a connection for an optional DCNM-MICS or DCNM-MICL pluggable microphone, available separately
