Bogen TPU60B - Telephone Paging Amplifier (60W)

The Bogen TPU60B Paging Amplifier features 60 watts of power, is wall mounted and provides inputs for a paging microphone, music source, external telephone ringer, music mute trigger and more. The TPU60B amplifies background music and pages sent via telephone lines in any office setting, retail space, etc.

A variable music mute function adjusts the mute level of background music during pages and the on-board Aphex® Aural Exciter feature improves tonal quality and enhances intelligibility of the pages. There is an on-board ALC limiting circuit that prevents overload and distortion due to excessive audio peaks. Separate microphone and music volume controls also provide flexible control over the audio mix.

60W amplifier

Choice of outputs include 16-ohm, 25VCT, 25V, 70V balanced or unbalanced

Choice of inputs include RCA or screw-terminal Music Input, balanced microphone input, music mute trigger, contact ring, telephone ring and ground

Flat design for easy wall mounting

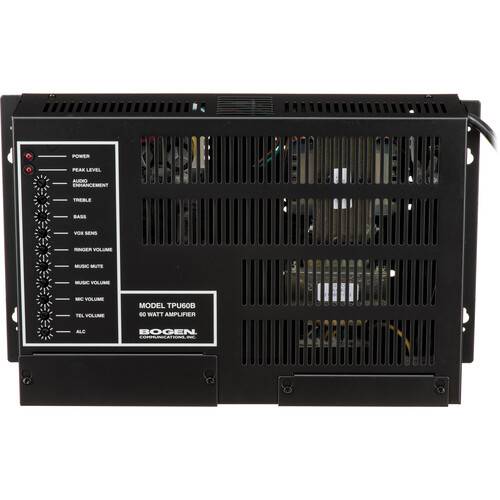

Comprehensive dial controls on the front panel

Music Mute variable level adjustment

Aphex® Aural Exciter tonal enhancement feature
