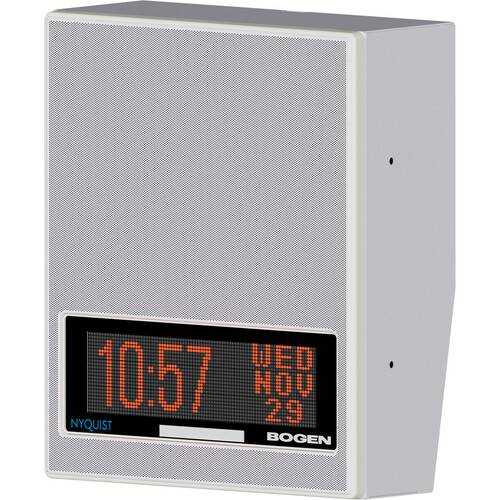

Bogen Nyquist VoIP Wall Baffle Combo Speaker with Integrated LED Text Display and LED Flasher

Deliver simple and clear communication with the Bogen Nyquist VoIP Wall Baffle Combo Speaker, a self-contained baffle speaker with an integrated microphone, LED text display, and LED flasher. The device is PoE powered and features an integrated 10W audio amplifier. A separate, high-performance MEMS microphone provides superior talkback audio.

The message display can show user programmable messages for standard or emergency announcements, as well as a clock with date and time (seconds are optional). The flasher is completely programmable for color, duty cycle, and duration to differentiate alert types. It can also be triggered, independent of the message display.

At a Glance

• 10/100 Ethernet connection
• PoE (Type-1) IEEE 802.3af compliant
• DHCP deployment for easy installation
• Pre-assembled for easy installation
• 10W integrated audio amplifier
• Reset button for restoring factory settings
• Form-C SPDT Type-2 A 30 VDC dry contact relay output
• DSP-based noise rejection and voice bandwidth optimization
• MEMS microphone for superior talkback audio
• CAN Bus 2.0 Interface connects to Nyquist Digital Call Switches (NQ-E7020-G2)

Key Benefits

• LED Message Display to visually inform students and personnel of the date and time, or scroll emergency or standard messages
• Programmable messages for predefined or manually input messages, with longer ones scrolled across the display for a defined period of time
• Programmable flasher for gaining audience attention; use different colors for different types of alerts (e.g., fire, lockdown, weather, etc.) and triggers.
• Routines/Routines API functionality for displaying messages, alerts, and flashes via predefined Routines triggered through system events or API calls
