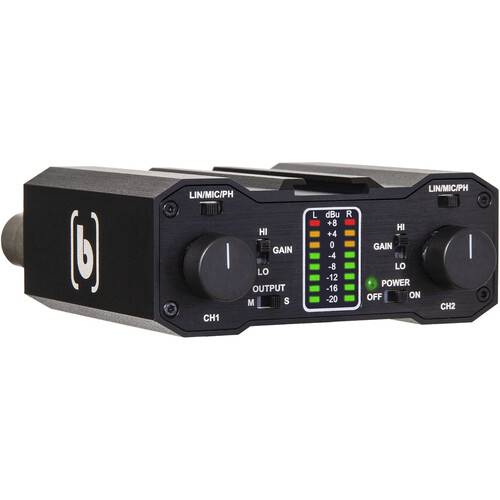

Beachtek DXA-PRE Two-Channel Preamplifier for Cinema Cameras

Connect professional XLR-equipped microphones or line-level signals to your RED, ALEXA, and other cinema cameras or DSLR/mirrorless camera with the compact, rugged, and easily mountable Beachtek DXA-PRE, a two-channel preamplifier with phantom-powered XLR inputs. Its powerful preamps offer up to 60 dB of gain while delivering low noise and a wide 100 dB dynamic range. Thanks to its integrated shoe mount, the supplied brass mounting foot, and the included V-CLICK quick-release plate, the DXA-PRE accommodates an array of mounting configurations, including rail mounting with an optional third-party accessory.

Each channel features a balanced XLR mic/line input with switchable 48V phantom power for condenser mics, low/high gain settings, and a trim knob. An easy-to-read LED meter helps you keep track of your levels. Select mono or stereo for the output signal.

Note:

The BT-PWR power cable (not included) is required to connect the DXA-PRE to any D-Tap power source.

The DXA-PRE features both a balanced mini-XLR 5-pin output and an unbalanced stereo 3.5mm TRS output. Optional cables are available separately to connect the unit to a wide variety of cameras.

For powering, the BT-PWR power cable (available separately) is required to connect the DXA-PRE to any D-Tap power source.

• RED DSMC2 All models: Included SC35 cable or Beachtek BT-35 cable for higher output
• RED DSMC3 V-RAPTOR, V-RAPTOR XL: Beachtek BT-5PIN cable
• RED RANGER HELIUM, GEMINI, MONSTRO: Beachtek BT-5XLR cable
• ARRI ALEXA Mini: Beachtek BT-5PIN cable
• ARRI ALEXA Mini LF, ALEXA 35: Beachtek BT-6PIN cable
• ARRI ALEXA LF, ALEXA SXT W: Beachtek BT-5XLR cable
• SONY VENICE, VENICE 2: Beachtek BT-5XLR cable
• DSLR, Mirrorless, Camcorders: SC35 3.5mm TRS to 3.5mm TRS cable (included in package)

EAN: 8960280000980
