AtlasIED IP-DMF PoE+ Indoor Wall Mount LCD Endpoint with Talkback Microphone and LED Flasher

TheAtlas Sound IP-DMF is a versatile wall-mounted LCD endpoint ideal for communication infrastructure within corporate offices, institutions, entertainment complexes, industrial facilities, houses of worship, and much more. With auto-registration via SLP, DHCP, or IEDNet+, it's extremely simple to set up existing voice VLAN systems with connected IP speakers, much like a VoIP handset, and the integrated class-D amplifier supports up to two 8 ohm speakers for feeding announcements and similar auditory communications into individual spaces.

The IP-DMF sports an integrated talkback microphone with support for half- or full-duplex paging, and auxiliary line-in and line-out I/O options are available as well. Through a combination of the high resolution LCD screen and the multi-color LED flashers, it's easy to push critical communications, text scrolls, bell schedules, alerts, or simply NTP-powered clock information to each endpoint. The IP-DMF is constructed from durable 18-gauge metal and includes all necessary screws for mounting.

Flexible Connectivity

IP-DMF includes wide ranging connections for integration into any existing or new communication infrastructure arrangement. A simple RJ45 connector is used for network communication, and GPIO allows for two general purpose inputs and one relay output to unify connectivity with third party systems. Screw block terminal ports are used for line I/O and 8 ohm speaker connections (25W max), and power is provided by PoE+ or an optional external 24 VDC power supply.

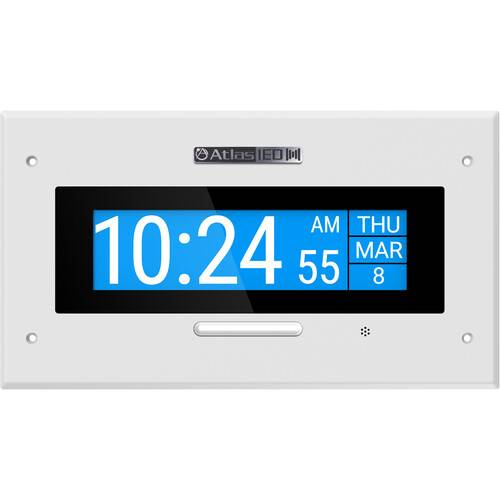

Network-Controlled LCD Screen

The LCD screen on this endpoint sports a bright, high-resolution display and can be used for numerous functions, from basic information like NTP timeclock and date information, to critical messages, alerts, and announcements. Customers can sync the display to InformaCast for color styles and programmable message types, ensuring clear communication during any event. ADA-compliant scrolling text and visual notifications are easy to set up, and the multi-color LED flashers located below the display can be used to alert room occupants of an incoming scrolling text message.
