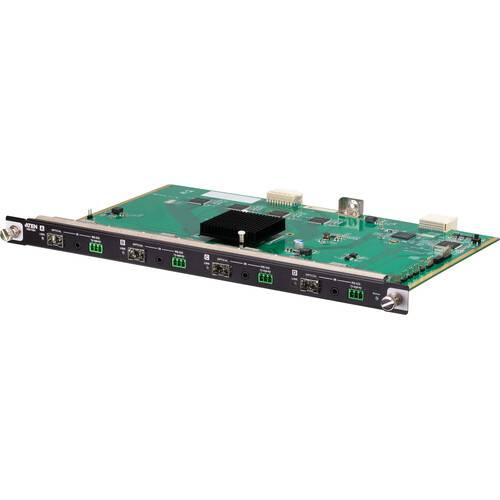

ATEN 4-Port 10G Optical Input Board for Modular Matrix Switch (Up to 984')

Extend your HDMI transmissions when using the ATEN Modular Matrix Switch with this 4-Port 10G Optical Input Board from ATEN. The board features four bidirectional SFP+ fiber modules that can extend HDMI video up to 984' over multi mode cables. It supports up to DCI 4K60 video with embedded audio, and it can also transmit bidirectional RS-232 and IR signals. Other features include hot-swap capability, EDID management, HDCP 2.2 support, CEC support.

Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility

Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables

Superior video quality over long-distance transmission up to 4096 x 2160p60 (4:2:0), up to 984' over multi mode cables

HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible

Consumer Electronics Control (CEC) support

Bidirectional RS-232 channel allows you to connect to serial terminals or serial devices, such as touchscreens and barcode scanners

Bidirectional IR channel: IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz

EDID Expert selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens

Hot-swappable fiber optic module and I/O boards for easy integration and maintenance
