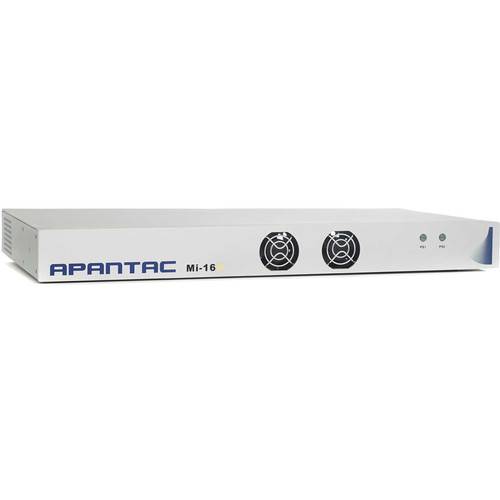

Apantac MI-16# 16x2 3G/HD/SD-SDI Video Multiviewer (32+ Windows, 1 RU)

The 1 RU 16x2 3G/HD/SD-SDI Video Multiviewer from Apantac has 16 video inputs, 16 video passive loop outputs, and two video outputs. Each output can have up to 16 windows. Each source can be copied to multiple windows of the same size or different sizes. It supports an output resolution of 1920 x 1080p. This multiviewer also features two independent DVI/HDMI and SDI outputs, an Ethernet port, a Serial port, and AES and Analog audio monitoring outputs. It is powered using the included power cord. Two rack ears, four RJ50 to DB9 adapter cables for GPI, four DB9 breakout terminal blocks, an RJ45 to DB9 adapter cable for RS-232 interface, 16 terminators for passive loop outs, and an analog audio breakout cable are included.

Low latency, single-frame processing delay

Windows can be sized and moved freely

20 standalone labels

Four customizable logos

32 GPIs for tallies, count up/down triggers, or alarms

Digital and Analog clocks can be sync'd with LTC or NTP

Borders can be turn on or off

Safe area markers

Visual alarm tags for video/audio alarm detection

Two analog and two digital clocks

Each source can be copied up to 16 times as long as they are the same size

Each source can be copied to a different size window, but only up to 16 times

Once a source is copied to a different size, the total number of sources will be decrease by one
