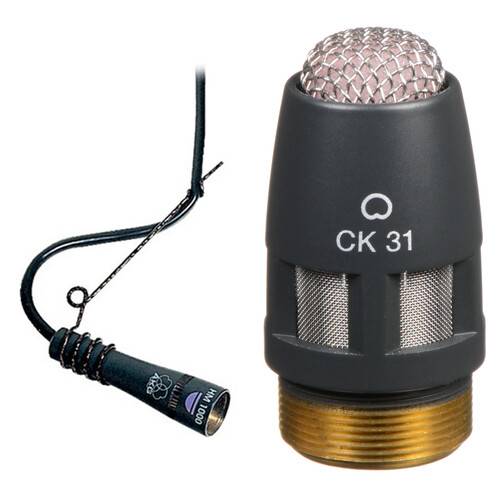

AKG HM1000 Hanging Module and CK31 Cardioid Microphone Capsule Kit

The AKG HM1000 Hanging Module and CK31 Cardioid Microphone Capsule Kit from Fotohaus Klinger includes the AKG HM1000 hanging module, a 33' hanging cable, a spring-loaded steel clip, and the CK31 modular cardioid microphone capsule. This kit can be used to fly the mount and microphone capsule from a ceiling to capture music or speech in houses of worship, conference rooms, boardrooms, and other sound reinforcement applications.

The AKG HM 1000 Ceiling Mount is designed to mount the AKG CK 31, CK 32, CK 33, CK 47 and CK 80 microphone capsules from high ceilings in theaters, concert halls, houses of worship, lecture halls and anywhere hanging is desired. The mount includes a 33' (10m) long, specially treated cable that avoids twisting and a spring-loaded, steel hanging clamp for exact microphone positioning. An LED ring illuminates to indicate power.

The AKG CK31 is a cardioid microphone capsule designed for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The cardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.

The wide frequency response of 50 Hz to 20 kHz minimizes low-frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The module design allows quick and easy capsule replacement for added flexibility. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.

The CK31 is designed with gold-plated contacts with deep threads for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The modular design offers quick capsule replacement and enhances flexibility.

The wide frequency response of 50 Hz to 20 kHz offers smooth, accurate audio reproduction while minimizing low-frequency noise.

The included dual-layer windscreen provides a primary layer, which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm.

Polar Pattern Cardioid Frequency Response 50 Hz to 20 kHz Dynamic Range (Typical)_not specified by manufacturer_ Signal-to-Noise Ratio 73 dB (A-weighted) Maximum Input Sound Level 125 dB (1% THD) Power Requirements 9 to 52 Volts Phantom Power to IEC 61938 (requires DPA-P or DPA adapter included in GN and HM 1000 series modules) Output Impedance< 600 Ohms Rated Load Impedance> 2 kOhms Output Connectors Threaded termination for use with GN and HM Series modules Low Frequency Roll-Off No Dimensions 0.8 x 0.5" / 20.0 x 13.5 mm Weight 0.2 oz / 5.0 g
